Removing Spray Nozzle For Headlight Washer System
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Some of the repair illustrations show only one side of the vehicle or describe a similar component .
- Naturally, some steps also have to be performed on the opposite side of the vehicle as well .

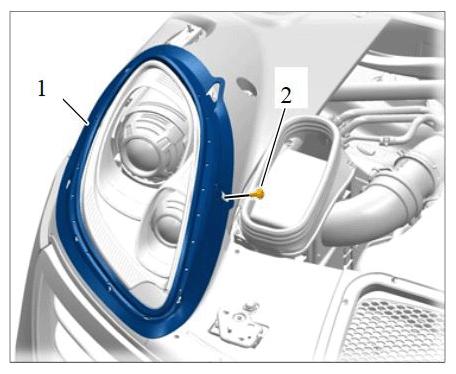

- Loosen seal -1-
on the headlight.
- 1.1. Unscrew fastening screw -2- .
- 1.2. Unclip seal close to the spray nozzle for the headlight washer system on the main headlight using a plastic wedge and lift it up carefully.

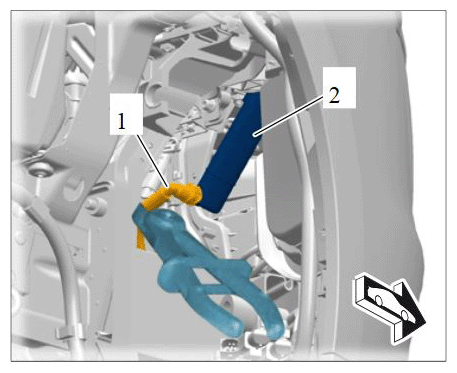

- Disconnect hose for headlight washer system.
- Release hose connection -1-
at the spray nozzle for the headlight washer system -2-
and pull it off.

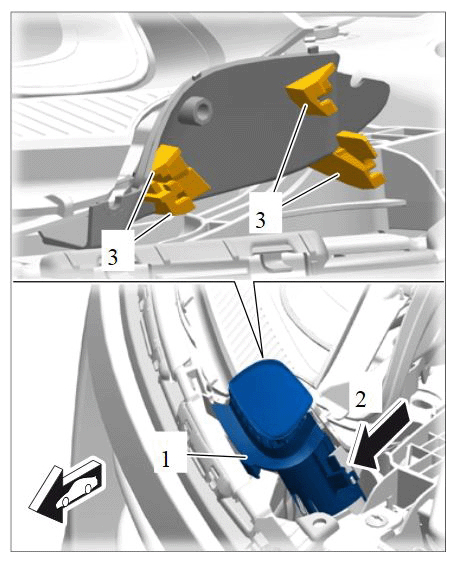

- Release spray nozzle for headlight washer system -1-
(-2-
) and slide it sideways out of the guides -3-
on the headlight.
Removing spray nozzle for headlight washer system
