Removing Light Bulb Igniter

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Always comply with the regulations for handling ESD-sensitive components!
  • Always wear approved work clothes and shoes when carrying out assembly work  .
  • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation  .
  • Do not touch electric pins and plug contacts  .
  1. Unscrew fastening screws -1-  .
  2. Carefully remove light bulb igniter -2-  from the headlight.
    G11984688

    Removing light bulb igniter

  3. Release electric plug connection -1-  (-a-  ) and pull it off the light bulb igniter -2-  .
  4. Pull electric plug connection -3- off the light bulb igniter.

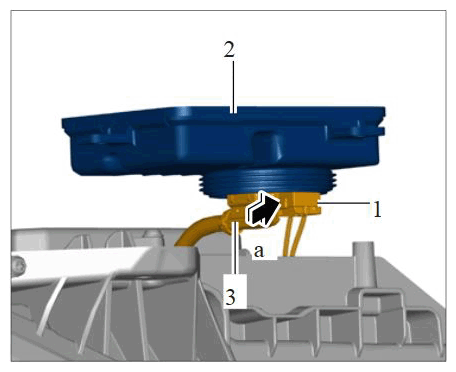

    G11984689

    Disconnecting electric plug connections
