Removing side direction indicator light

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Voltage peaks
  • Risk of damage to electrical load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing electrical load.

NOTE:
  • Some of the repair illustrations show only one side of the vehicle or a similar component  .
  • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

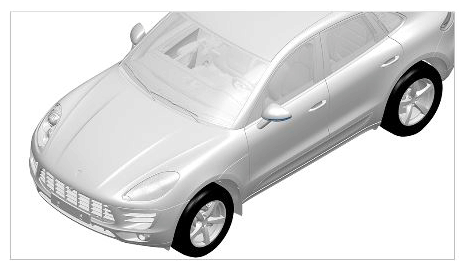

G11984681

Installation position of side direction indicator light

  1. Loosen fastening screws -1-  on side direction indicator light.

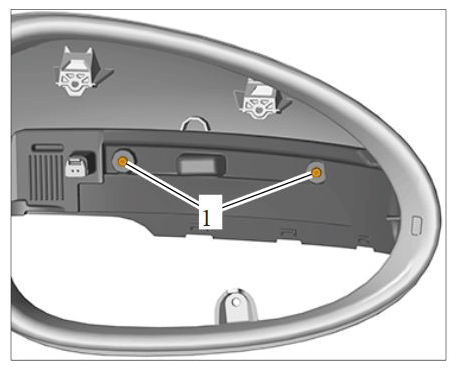

    G11984682

    Loosening side direction indicator light

  2. Unclip side direction indicator light -arrow-  and remove it from the rear-view mirror housing (upper part).

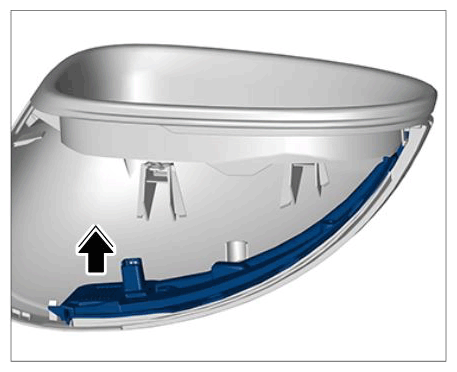

    G11984683

    Removing side direction indicator light
