Installing Side Direction Indicator Light

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Some of the repair illustrations show only one side of the vehicle or a similar component  .
  • Naturally, some steps also have to be performed on the opposite side of the vehicle as well  .

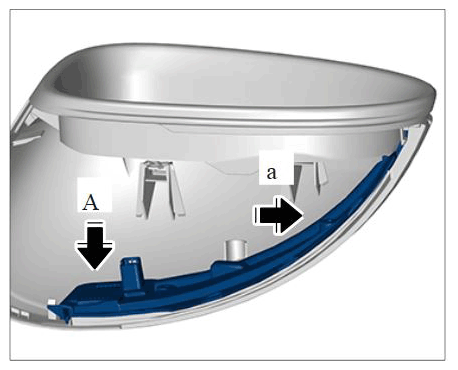

  1. Push side direction indicator light into the rear-view mirror housing (upper part) -a-  and clip it in -A-  .
    G11984684

    Installing side direction indicator light

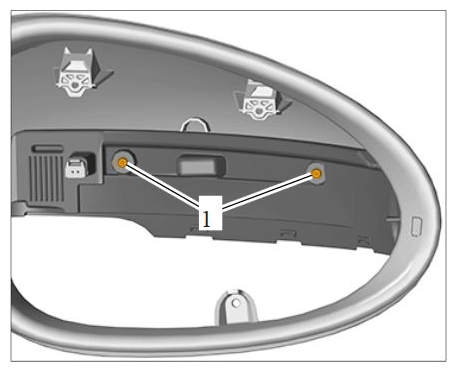

  2. Tighten fastening screws -1-  for side direction indicator light.
    G11984685

    Installing side direction indicator light
