Removing Tail Light

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Unclip electric plug connection -1-  at the body. Then release -2-  and disconnect it.
  2. Remove connector holder -3- from the connector.

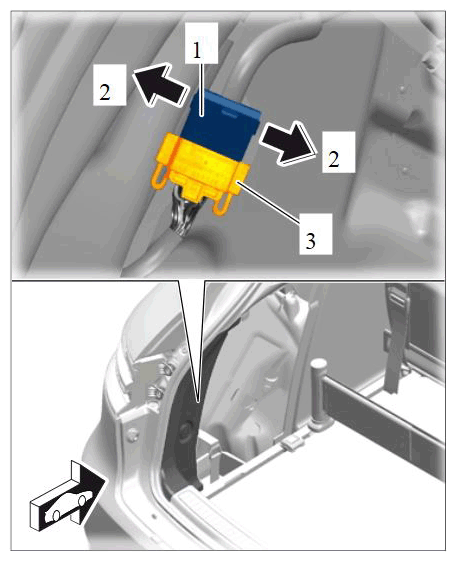

    G11984655

    Disconnecting electric plug connection

  3. Pull seal -1-  in the tail light area off the body seam.
  4. Disengage cover -2-  at the sides -3- from the two clamps -4-  .
  5. Disengage cover by pulling it forward -5-  out of the tail light seam -6-  .

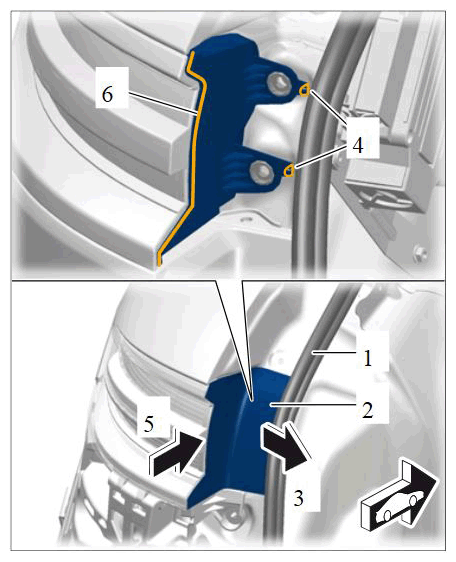

    G11984656

    Removing cover

    When removing the left tail light:

  6. Loosen holder -1-  for the line from the rear retaining strip -2-  .
  7. Disengage holder -3- (-4-  ), remove it from the rear retaining strip and leave it hanging with the line connected.
    G11984657

    Loosening holder

    All vehicles

  8. Unscrew fastening nuts -1-  on the rear retaining strip -2-  and unscrew fastening screw -3-.
    G11984658

    Loosening rear retaining strip

  9. Unscrew fastening screws -1-  on the tail light -2-  .
  10. Remove tail light with rear retaining strip.

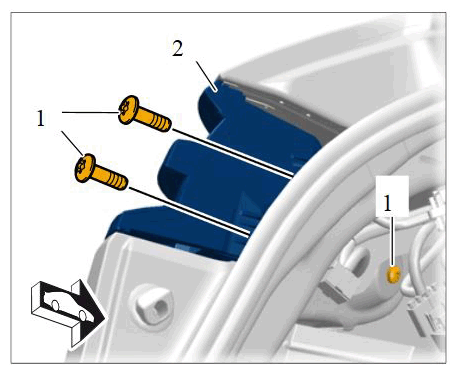

    G11984659

    Removing tail light

  11. Disengage locking mechanism -1-  and remove rear retaining strip -2-  from the tail light -3-.
  12. If you are replacing the tail light, pull adjustment device -4-  off the tail light.

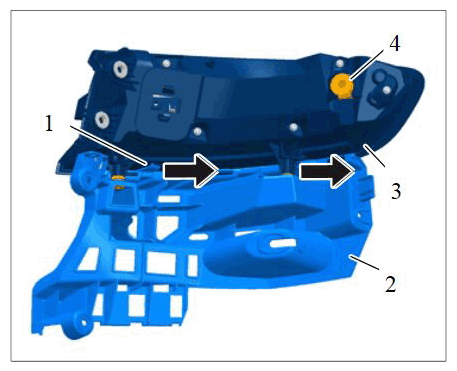

    G11984660

    Loosening rear retaining strip from tail light
