Installing Headlights

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

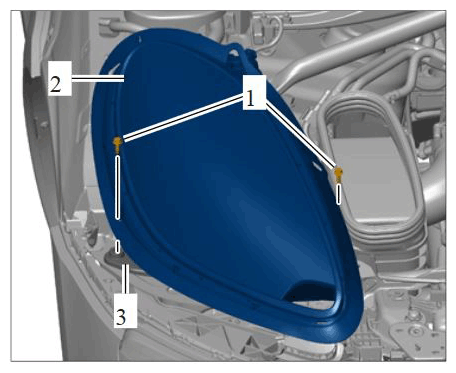

  1. Guide the headlight -2-  back into the cut-out for the headlight mounting point -3-.
  2. Tighten fastening screws -1-  .
    G11984627

    Removing headlights

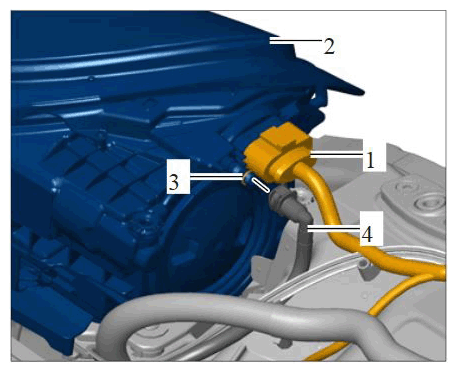

  3. Plug in electric plug connection -1-  on the headlight -2-  until it engages securely.
  4. Check condition of O-ring -3- and check that it is seated correctly.
  5. Connect hose connection for the breather hose -4-  at the headlight until it engages securely.
    G11984628

    Securing hose connection and electric plug connection
