Installing Headlight Mounting

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

If work is carried out on the headlight or retainer plate, the installed fastening screws must be replaced by micro-encapsulated fastening screws (see PET).

Micro-encapsulated fastening screws must be tightened only once to the specified torque.

Micro-encapsulated fastening screws must be replaced after loosening them.

Left headlight mounting:

  1. Clip antenna line holder -1-  into the headlight mounting -2-  .
  2. Clip holders for electric plug connections -3- and headlight cleaning system hose -4-  into the headlight mounting -2-  .

    Headlight mounting at the left and right:

  3. Position headlight mounting -2-  on the adjusting elements.

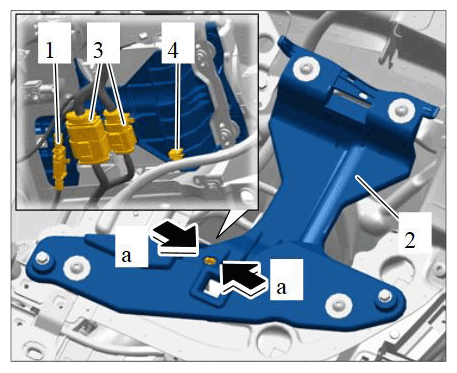

    G11984607

    Clipping in holders and electric plug connections

  4. Fit fastening screws -1-  .
    1. 4.1. Press fastening screw -1-  into adjusting element.
    2. 4.2. Press headlight mounting -2-  in the adjusting element area down -arrow F-  and screw fastening screw -1-  into adjusting element.
    3. 4.3. Align markings on the headlight mounting -2-  - if markings were made - with the washers, press headlight mounting -2-  down in the adjusting element area -arrow F-  and tighten fastening screws -1-

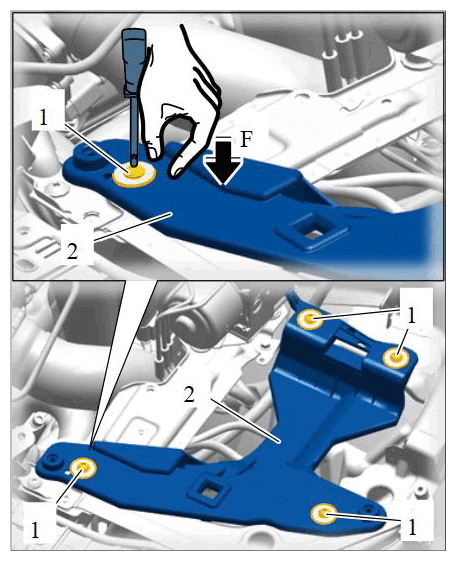

      G11984608

    Screwing in fastening screws
