Adjusting Headlight Mounting Towards Z-Axis And X-Axis

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Do not adjust gap dimensions between the headlight mounting and front lid until you have adjusted the gap dimensions of the front lid with respect to all other add-on parts  .
  • Adjust gap dimensions between the headlights and front lid in accordance with the specified dimensions  .
  • The specified gap dimensions are guidelines and are relevant for repair work and assembly work  .
  • The gaps must not taper off or become narrow in places  .
  • Use star gauge Nr.127-1 Pos.1  and star gauge Nr.127-1 Pos.2 to check the gap dimensions  .
  • The gap dimensions and offset positions of the headlights are adjusted by moving the headlight mountings and by screwing the adjusting elements in and out  .
  1. Insert headlight into the mounting.
  2. Close the front lid and check the gap dimensions between the headlight and front lid. → WM 6X00IN GAP DIMENSIONS
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Gap dimension between headlight and front lid Gap dimension on headlight is the same all the way around Gap dimension 4.7 mm +/-0.8 mm
  3. Remove headlight.
  4. Loosen fastening screws -1-  .
    1. 4.1. Press headlight mounting -2-  in the adjusting element area down -arrow F-  to ensure that the position of the adjusting element cannot be changed.

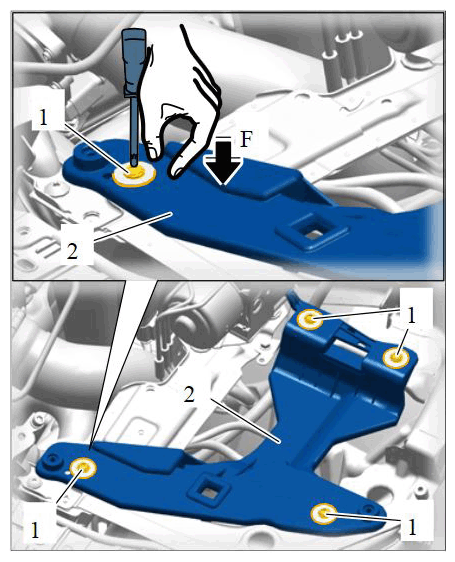

    G11984609

    Loosening fastening screws

  5. Move headlight mounting -2-  in the required direction -X, Z-  .

    A scale is visible close to the fastening screws on the headlight mounting. The scale serves as a guide when the headlight is removed and makes adjustments easier.

  6. Tighten fastening screws -1-  .
    1. 6.1. Press headlight mounting -2-  in the adjusting element area down to ensure that the position of the adjusting element cannot be changed.

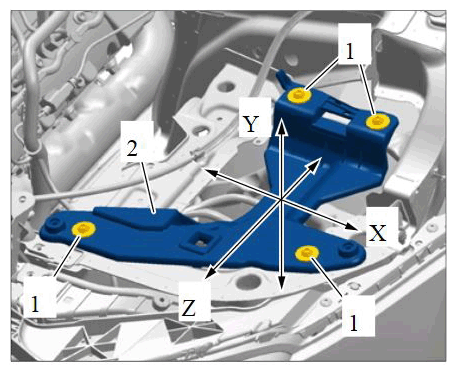

    G11984610

    Positioning headlight mounting

  7. Insert headlight into the mounting.
  8. Close the front lid and check the gap dimensions between the headlight and front lid.
  9. Repeat the adjustment procedure if necessary.
