Removing Main Headlight Switch

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

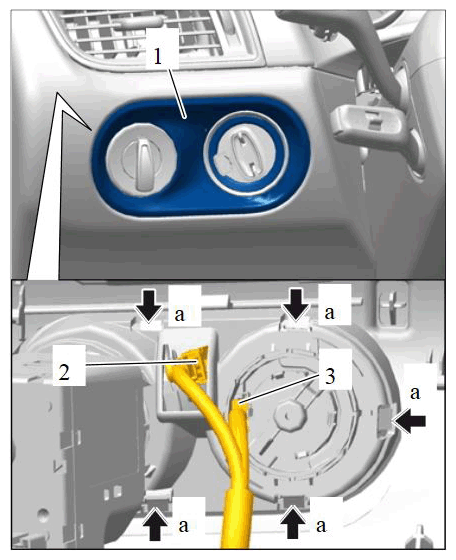

  1. Remove trim panel -1-  on main headlight switch and ignition starter switch.
    1. 1.1. Disconnect electric plug connection -2-  for the ignition starter switch light.
    2. 1.2. Unclip locking lugs -a-  and remove trim panel.
  2. Disconnect electric plug connection -3- for the main headlight switch.
    G11984602

    Removing trim panel on main headlight switch and ignition starter switch

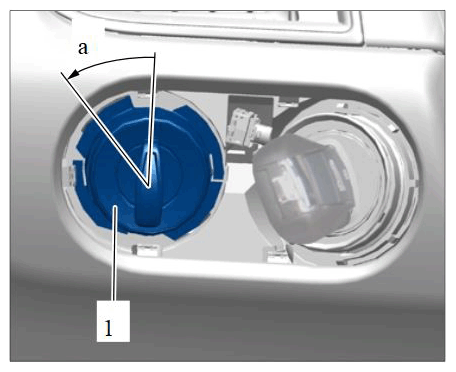

  3. Turn main headlight switch housing -1-  approx. 40° anti-clockwise -a-  and remove it from the trim panel under the dashboard at the left.
    G11984603

    Removing main headlight switch
