Removing Rear Apron
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment .
- The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant .
- Some steps must be carried out automatically .
- Some of the repair illustrations show only one side of the vehicle
.

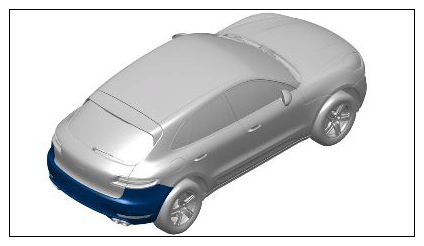

Installation position of rear apron

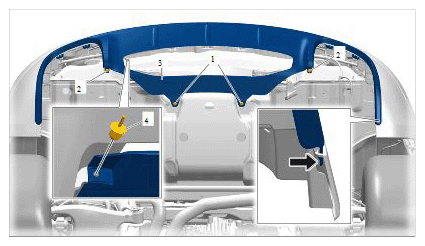

- Unscrew fastening screws -1-
for the rear panel -3-
on the underbody.
Rear panel

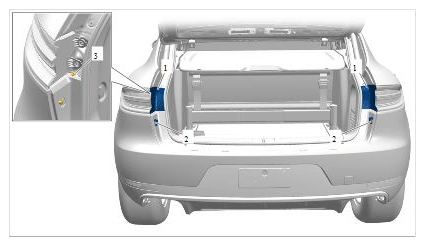

- Open rear lid.
- Unscrew fastening screws -2- and remove guide pins for rear lid.
- Unclip and remove trim panels -1- on the reversing lights and remove reversing lights.
- Unscrew fastening screws on the rear retaining strip -3-
.
Mounting for rear apron, top

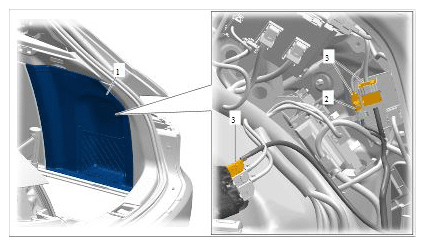

- Remove side trim panel at the right -1- in the luggage compartment.
- Open fixing clip -2- .
- Release and disconnect electric plug connections -3-
.
Wire harness for rear apron

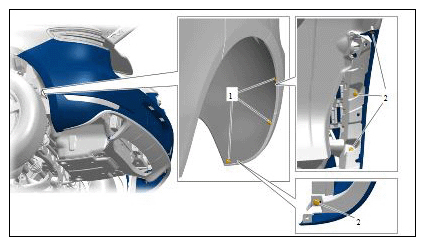

- Unscrew fastening screws -1- on the rear wheel housing liners.
- Unscrew fastening screws on the retaining strip -2-
.
Mounting for rear apron at wheel housing
- Remove rear apron by pulling it to the rear.
- 11.1. Remove rear apron to the rear until the wire harness is accessible.
- 11.2. Remove seal for wire harness at the body, guide wire harness out completely through the bore and remove rear apron.
