Installing wheel

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

In the event of heavy soiling, clean the wheel bolts and concavities in the rim with a lint-free cloth. The wheel bolts/security wheel bolts (thread and all surfaces) must not be greased.

Wheel bolt!
The contact surfaces of the wheel on the wheel hub and brake disc must be clean. Clean them if necessary.

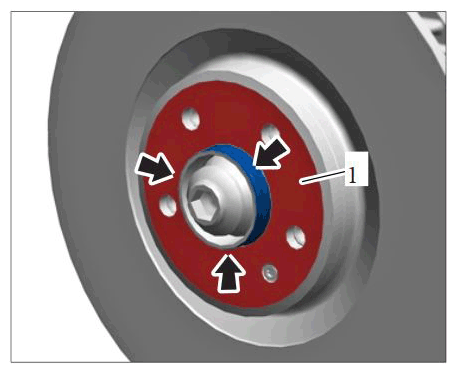

Re-grease or grease the wheel centering surface on the wheel hub (blue area) -arrows- with a very thin coat of Optimoly TA (aluminium paste).

The wheel contact surface on the brake disc (red area) -1- and on the wheel itself must not be greased (greasing is not permitted).

ONLY the area marked in blue -arrows- may be greased.

Greasing wheel centering surface
Fit wheel.
Never use an impact bolter to tighten the wheel bolts!

Assembly aids (threaded bolts for fitting wheel)
1. 3.1. On vehicles with PCCB, screw the assembly aids -1- into two threaded holes that are not next to each other before fitting the wheel.
2. 3.2. Carefully push the wheel over the assembly aids -1- .
3. 3.3. Screw the other wheel fastening bolts into the remaining threaded holes.
4. 3.4. Replace the assembly aids -1- with wheel fastening bolts.
5. 3.5. Fit wheel fastening bolts and tighten them evenly at the same time. Start at the top when tightening.
Tighten the wheel fastening bolts to the specified tightening torque. Tightening torque 160 Nm (118 ftlb.)

95BAA1, 95BAB1, 95BAC1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1.

Model year as of 20.

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C46, C96, C97, C98, C99.
