Removing steering wheel

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn wheels to straight-ahead position.
    NOTE:
    • Always release and disconnect the plug connections for steering wheel heater cables and airbag cables before removing the steering wheel  .
  2. Release plug connection for airbag wire harness -1  - and disconnect it.
  3. If the vehicle has a heated steering wheel: release and disconnect plug connection for steering wheel heating -2  -.

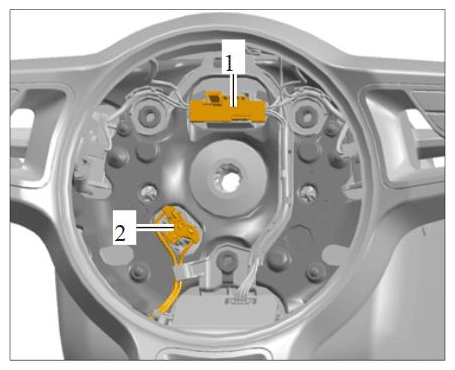

    G11978203

    Disconnecting plug connections

    NOTE:

    Immediately after unscrewing the screw and before  removing the steering wheel, always mark the position of the steering wheel between the steering wheel and steering column -2  -.

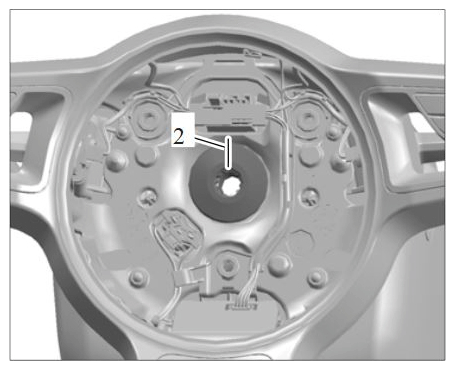

    G11978204

    Marking

    This ensures that the steering wheel will be fitted at the same position on the steering column again during reinstallation.

  4. Unscrew and remove fastening screw -1  - using multiple-tooth socket-wrench insert Nr.32  ().

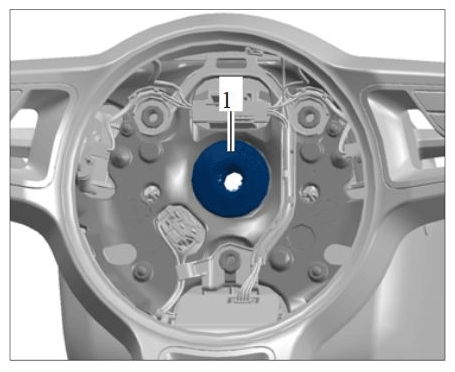

    G11978205

    Multiple-tooth screw

  5. Mark the position of the steering wheel.
  6. Remove steering wheel.
