Removing Rear-View Mirror Housing (Upper Part)

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Remove screws -1-  .
  2. Move upper part of housing -2-  in the lower, front area -arrow-  forward and up at the same time and unclip at the lower part of the housing.
  3. Unclip lower part of housing from brackets -3- on the direction indicator light.
  4. Guide upper part of housing -2-  out of the brackets -4-  and lift it up until the electric plug connections are accessible.

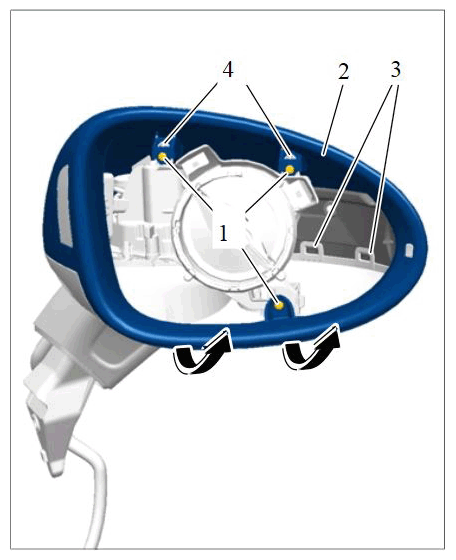

    G11981440

    Removing rear-view mirror housing (upper part)

  5. Disconnect electric plug connections -1-  .
  6. Remove upper part of housing -2-  .

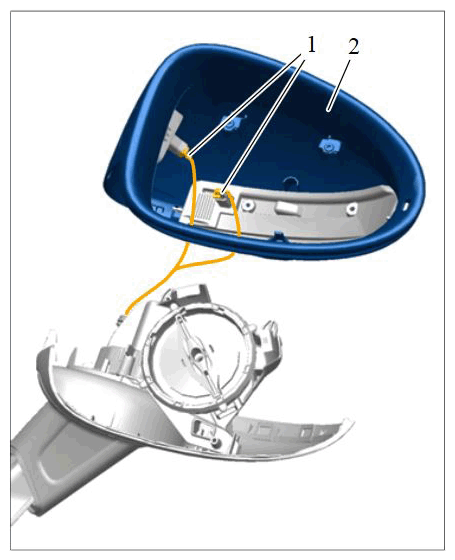

    G11981441

    Electric plug connections
