Removing Belt Tensioner

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The lock carrier must be moved to Service Position  for better access in the engine compartment at the front. WM 503809 LOOSENING AND SECURING LOCK CARRIER (SERVICE POSITION) .

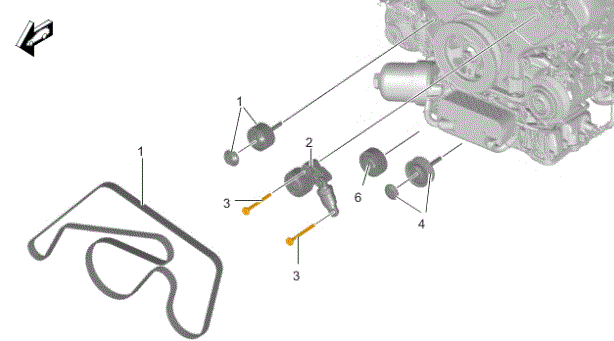

  1. Unscrew screws -3-  and remove belt tensioner.
    G00687087

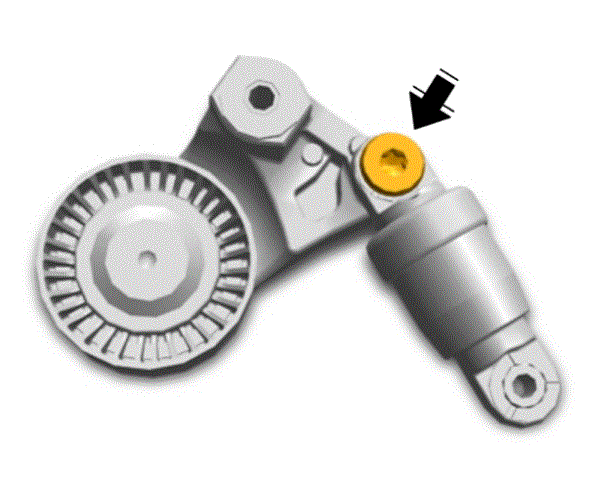

  2. The connecting screw -arrow-  does not  have to be loosened in order to remove the belt tensioner.
    G00687012
