Installing Pulley

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Coat sealing lip on the shaft sealing ring with engine oil.
Install pulley.
1. 2.1. Position pulley.
  Check tooth contour -arrow - .
2. 2.2. Fit new fastening screw.
  The fastening screw is supplied with a new O-ring -1- .

  Coat O-ring with engine oil before fitting it.

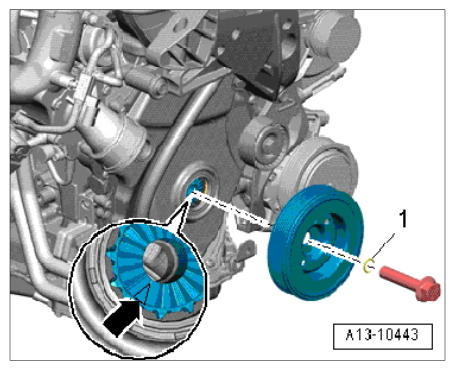

  Installing pulley
Counter the pulley with counter-hold tool T10355 and tighten fastening screw.
Step 1: Initial tightening 150 Nm (111 ftlb.)

Step 2: Final tightening +90°
Install control unit for fan.
1. 4.1. Position control unit -1- and fit and tighten fastening screw -arrow- .
  Tightening torque 2.5 Nm (1.75 ftlb.)
2. 4.2. Connect electric plug connections -2 and 3- .

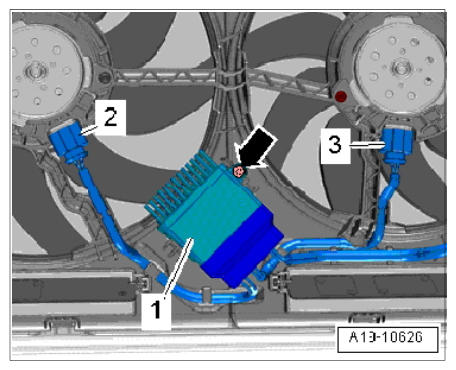

Fan control unit
Connect electric plug connection -1- and engage it in the holder.

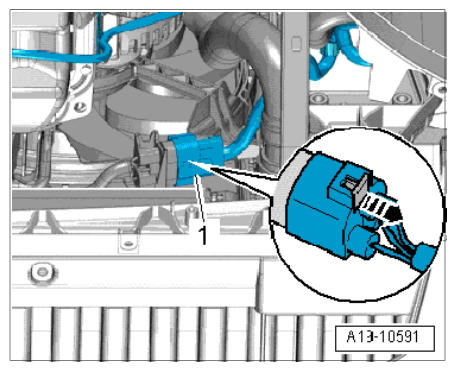

Electric plug connection for fan control unit
