Removing Drive Plate

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

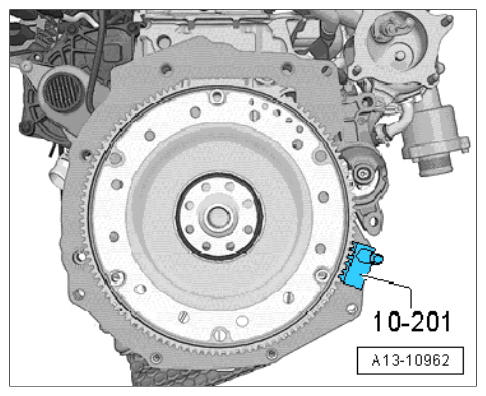

  1. Use counter-hold tool 10-201  to loosen the screws. → Counter-hold tool on drive plate
    G11980354

    Counter-hold tool on drive plate

    NOTE:

    Risk of damage to outer surface of bearing flange on the drive plate.

    • Use a multiple-tooth socket wrench with a shaft length of at least 40 mm to loosen and tighten the screws.
  2. Loosen fastening screws.
  3. Remove drive plate at the sensor wheel.
