Installing Drive Plate
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Use counter-hold tool 10-201
to tighten the screws. → Counter-hold tool on drive plate

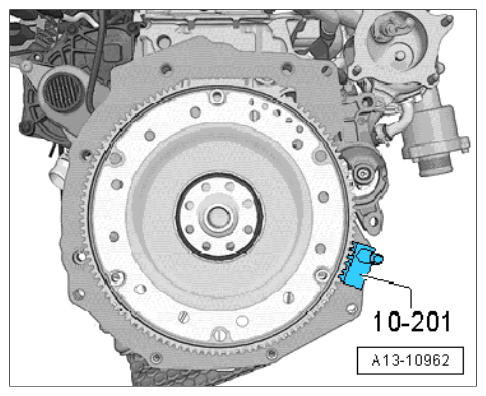

Counter-hold tool on drive plate
NOTE:Risk of damage to outer surface of bearing flange on the drive plate.
- Use a multiple-tooth socket wrench with a shaft length of at least 40 mm to loosen and tighten the screws.
- Fit and tighten new
fastening screws.
Step 1: Initial tightening 60 Nm (44 ftlb.)
Step 2: Final tightening +90°
