Removing Flywheel

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The flywheel must not be tilted during removal and installation.

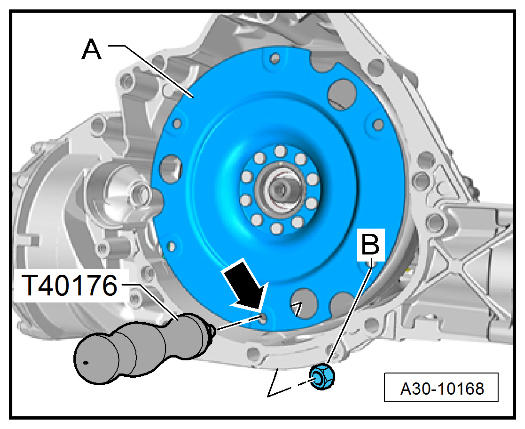

  1. Secure the extractor Extractor T40176  on the flywheel -A-  with a nut -B-  .
    G11980349

    Extractor

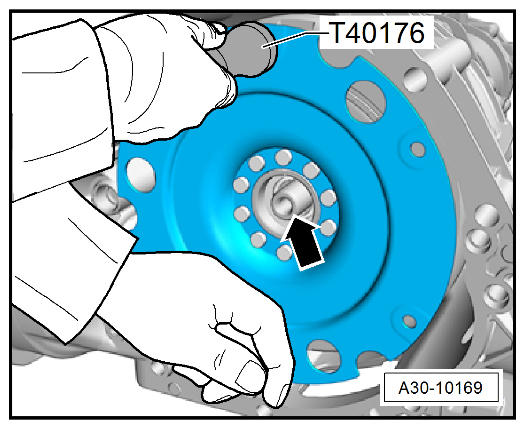

  2. Remove flywheel.
    1. 2.1. Turn extractor Extractor T40176  upwards.
    2. 2.2. Pull flywheel off the input shaft without tilting it.
    G11980350

    Flywheel
