Removing Crankshaft-Flywheel Sealing Ring

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

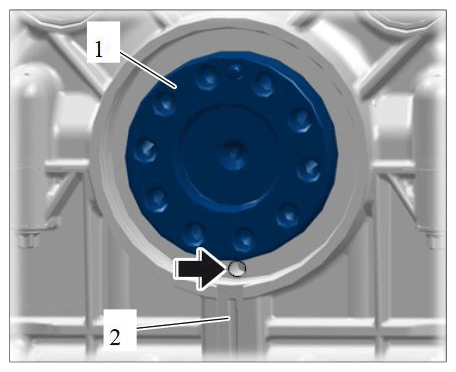

  1. To prevent damage to the crankcase -2- when removing the sealing ring, fit drift punch at the position -arrow- underneath the crankshaft -1-.
    G11980382

    Crankshaft sealing ring

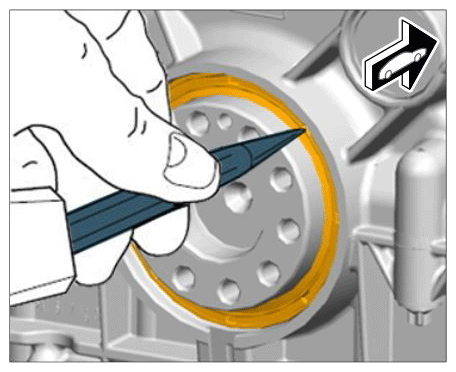

  2. Use drift punch, 1-mm tip Nr.167 to tap a small hole at a non-rubberised spot (rectangular window in the ring) on the sealing ring. → Drift punch
    G11980383

    Drift punch

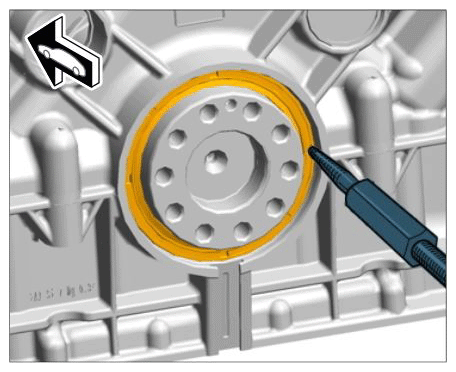

  3. Remove sealing ring.
    1. 3.1. Screw in extractor tip and use the slide hammer kit Nr.168 to knock out the sealing ring.
    2. 3.2. Alternatively, you can screw in a suitable tapping screw and pull out the sealing ring using a pliers.
    G11980384

    Punching out sealing ring

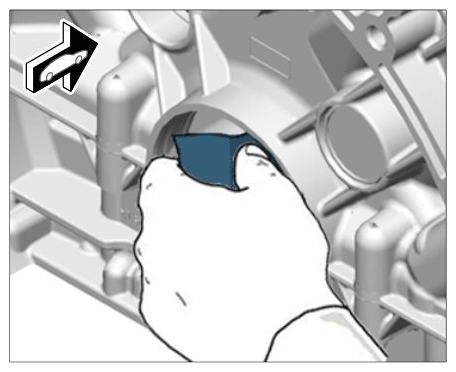

  4. Clean the crankshaft flange.
    1. 4.1. The crankshaft flange must be free of rust and dirt.
    2. 4.2. If necessary, clean it with brake cleaner and grind off any rust with a metal-polishing pad (e.g. Never Dull).
    G11980385

    Cleaning crankshaft flange
