Installing Pistons

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
  1. Fit piston pin using drift VW 222 A  .
  2. Fit new  circlips in the piston pin eye.
  3. Install piston rings offset by 120° using piston ring pliers Nr.58  .
  4. Insert bearing shells into the connecting rod and connecting-rod bearing cap. Do not mix up worn bearing shells.

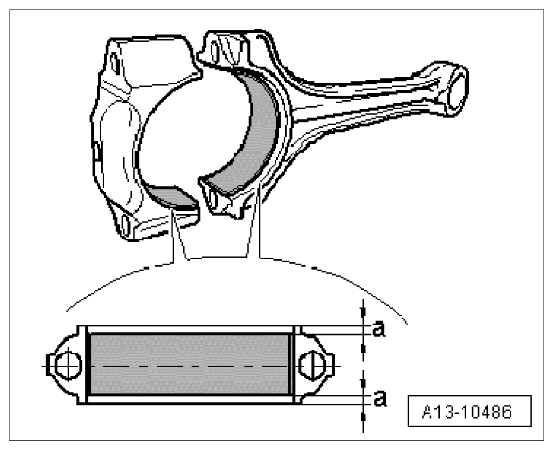

    Dimension -a-  must be the same at the left and right.

    G11980340

    Installation position of bearing shell

  5. Oil the running surfaces of the bearing shells.
  6. Install piston using piston-ring restraining strap Nr.57  .

    Check installation position: Arrow on piston crown is pointing to the pulley.

  7. Install connecting-rod bearing cap with new  fastening screws.

    Check installation position.

    Step 1:

    Step 2:
