Component overview - ATF oil pan

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Fastening screws for ATF oil pan → Tightening torque: 15 10 Nm (7.5 ftlb.)

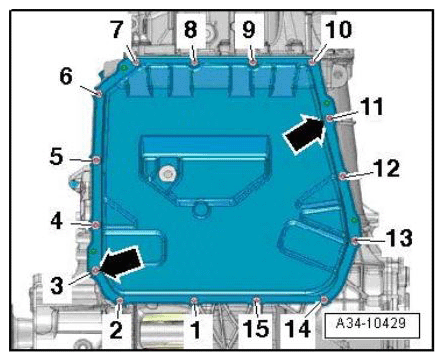

Fig 1: ATF Oil Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

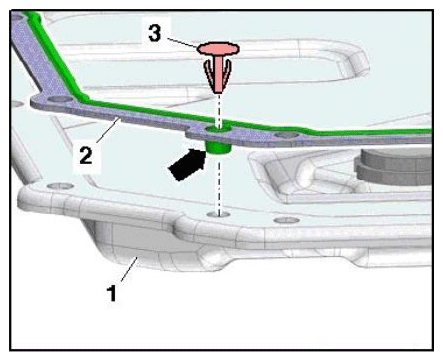

ATF oil pan

ATF oil pan
Seal/replace
Expansion rivet
- In original equipment for securing seal to ATF oil pan
- Not absolutely necessary for installation

Seal

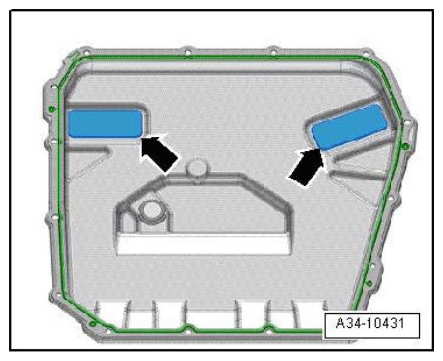

arrows - Magnetic strips

Clean magnetic strips when removing ATF oil pan

Magnetic strips in ATF oil pan
