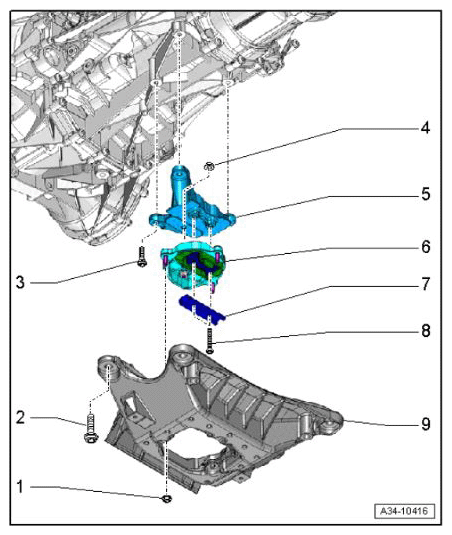

Transmission bracket
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Fastening nut → Tightening torque: 20 Nm (15 ftlb.)
- Fastening screw → Tightening torque: 70 Nm (52 ftlb.)
- Fastening screw → Tightening torque: 40 Nm (30 ftlb.)
- Fastening nut → Tightening torque: 20 Nm (15 ftlb.)
- Transmission bracket
- Transmission mount
- Lower lock for transmission mount
- Fastening screw → Tightening torque: 20 Nm (15 ftlb.) → Torque angle: +90°
- Transmission support
