Installing Locking Cable
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

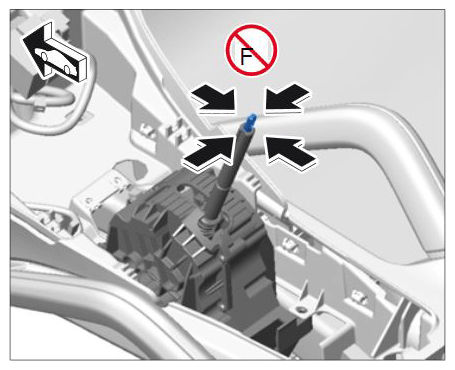

Do not apply lateral forces to the pull rod as it could break off.
Do not use force on the pull rod

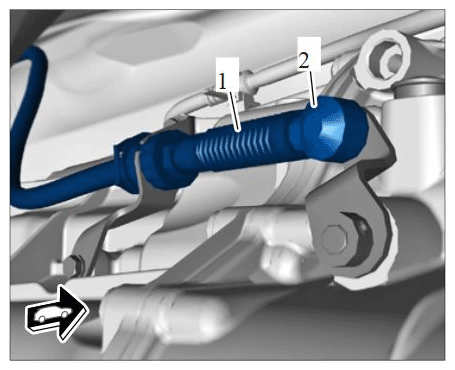

- Install locking cable -1- .

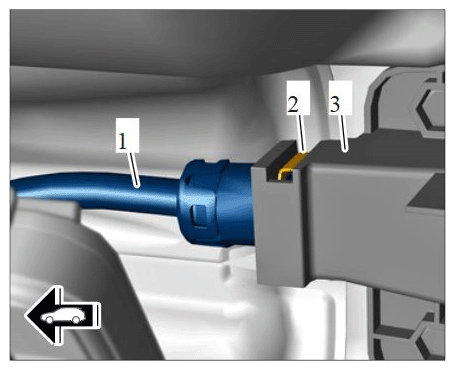

- Guide locking cable -1-
into the selector support -3-
and fit safety clip -2-
.
Safety clip for locking cable

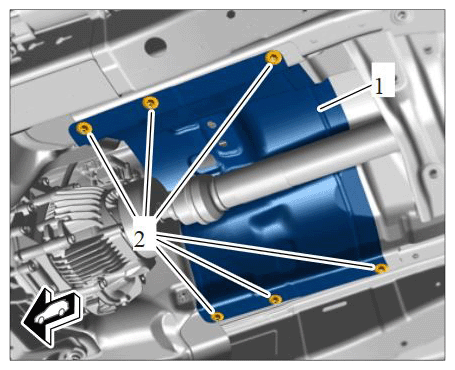

- Position heat shield and fit and tighten fastening nuts -2-
.
Heat shield

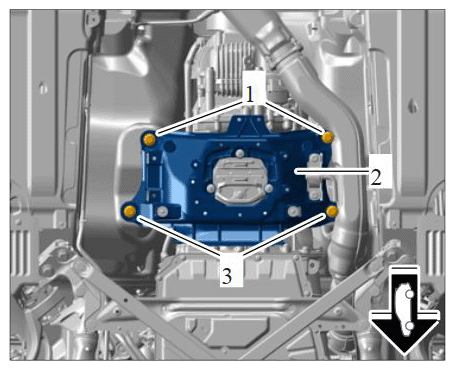

- Lift the transmission and fit and tighten fastening screws -1-
and -3-
. Tightening torque 70 Nm (52 ftlb.)
Gear support
NOTE:- Loosen clamping screw for locking cable by only about 1 turn.
- The clamping screw is only accessible in selector-lever position "P".
- When the clamping screw is loosened, the selector lever must remain in position "P".

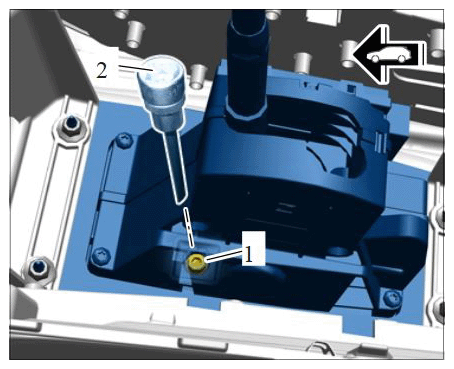

- Tighten fastening screw -1 -
for the locking cable using socket insert a/f 5 T40031
. Tightening torque 13 Nm (9.5 ftlb.)
Fastening screw for locking cable

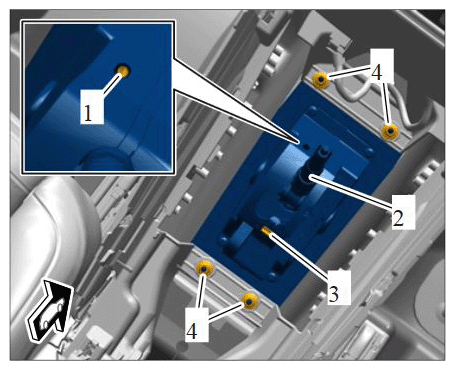

- Press release -3-
, actuate selector knob -2-
and move selector lever from position "P" to "D" and from position "D" to "M" and back again several times.
Selector support

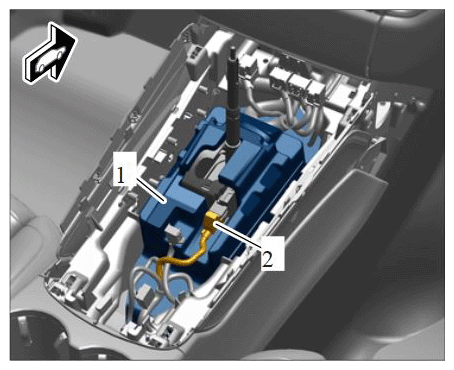

- Position insulating mat -1-
and connect electric plug connection -2-
.
Insulating mat

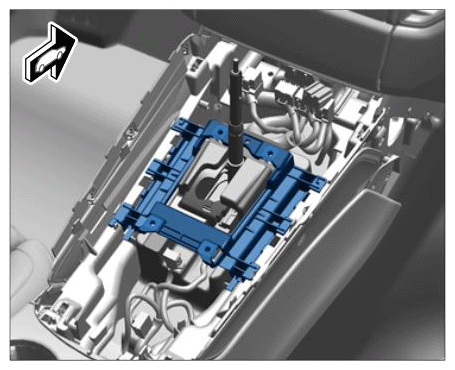

- Position holder for switch console -1 -
and engage in -direction of arrow-
.
Holder
