Removing Selector Knob

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Do not apply lateral forces to the pull rod as it could break off.

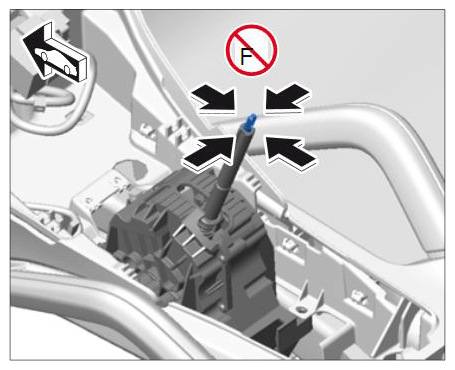

G11983424

Do not use force on the pull rod

  1. Turn locking mechanism at the bottom of the shift lever boot 45 degrees in -direction of arrow A-  and release selector knob by pulling it up in -direction of arrow B-  .

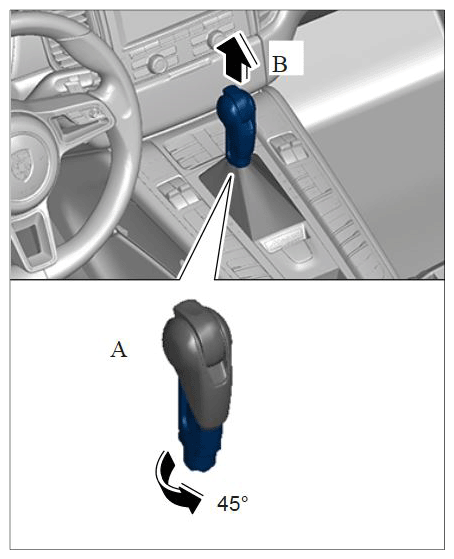

    G11983425

    Releasing selector knob

  2. Pull selector knob -2-  up slightly, position assembly wedge on selector knob cover -1-  and -3-  and unclip carefully.

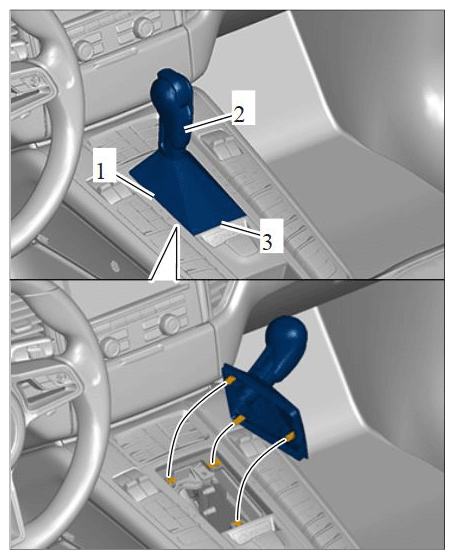

    G11983426

    Removing selector knob

  3. Pull off selector knob with selector knob cover.
