Installing Selector Knob

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

Do not apply lateral forces to the pull rod as it could break off.

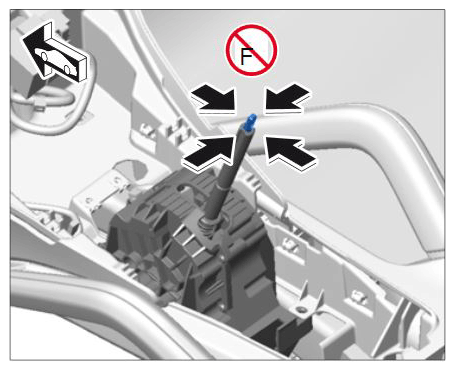

G11983427

Do not use force on the pull rod

  1. Position selector knob with selector knob cover.
    1. 1.1. Fit selector knob cover over the pull rod and position selector knob loosely.
    2. 1.2. Clip locking lugs for the selector knob cover into the center console.

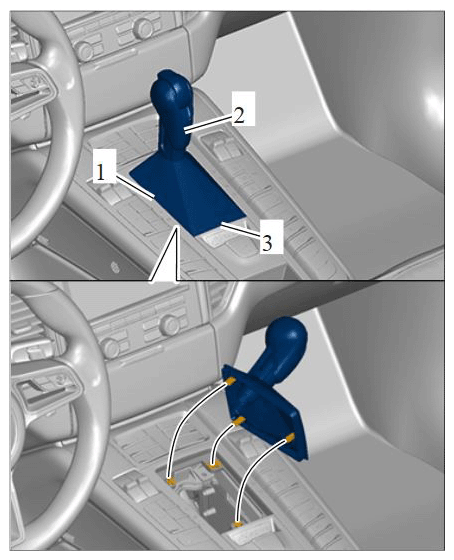

      G11983428

      Installing selector knob cover

  2. Turn locking mechanism at the shift lever boot 45 degrees in -direction of arrow-  and secure selector knob.

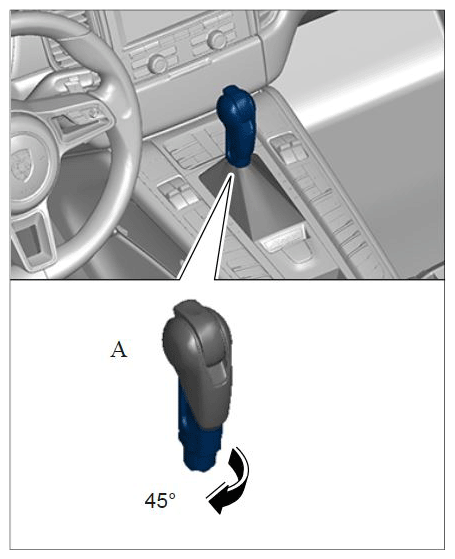

    G11983429

    Securing selector knob

95BAA1, 95BAB1, 95BAD1, 95BAF1, 95BAJ1, 95BAK1, 95BAS1, 95BAX1, 95BAY1, 95BAZ1

Model year as of 2014

C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C46, C96, C97, C98, C99
