Removing cover for front lock support

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Remove retaining clip -1-  and pull off release handle -2-  .
  2. Pull expansion rivets -3-  out of the cover -4-  .
  3. Unclip cover -4-  for lock support and remove it.
  4. 3.1. Unclip cover -4-  by pulling it up off the lock support and guide side tabs -5-  out of the front trim panel -arrow-  .

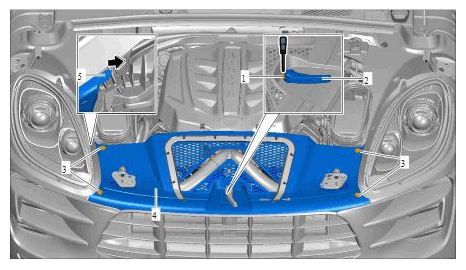

G11981716

Cover for front lock support
