Removing trim panel under dashboard at the left

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The number of fastening screws, fixing clips, plug connections, holders and trim panels can vary depending on equipment  .
  • The illustrations for removing and installing the drive mechanism are shown only on one equipment variant and may differ from the actual equipment variant  .
  • Some steps must be carried out automatically  .
  • Some of the repair illustrations show only one side of the vehicle  .
  1. Move front seat to the rearmost position.
  2. Unscrew fastening screws -1-  at the bottom of the dashboard.
  3. Unscrew fastening screw -2-  at the left of the dashboard.
  4. Unscrew fastening screw -3-  at the front of the dashboard.
  5. Unclip trim panel -4-  on dashboard and pull it down slightly.

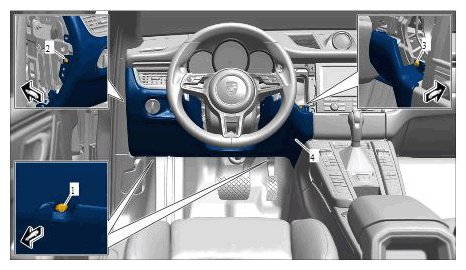

    G11981708

    Mounting for trim panel under dashboard

  6. Disconnect electric plug connections at the rotary light switch -1-  , ignition starter switch light -2-  , ignition starter switch -3-  and temperature sensor -4-  .
  7. Release and disconnect electric plug connection at the footwell light.
  8. Remove diagnostic socket -5-  on the trim panel -6-  .
  9. Guide out tab for footrest -7-  at the trim panel -6-  and remove trim panel -6-  .

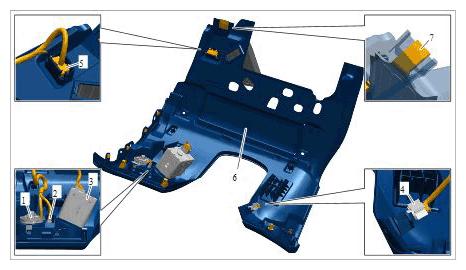

    G11981709

    Trim panel under dashboard
