Ignition system
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

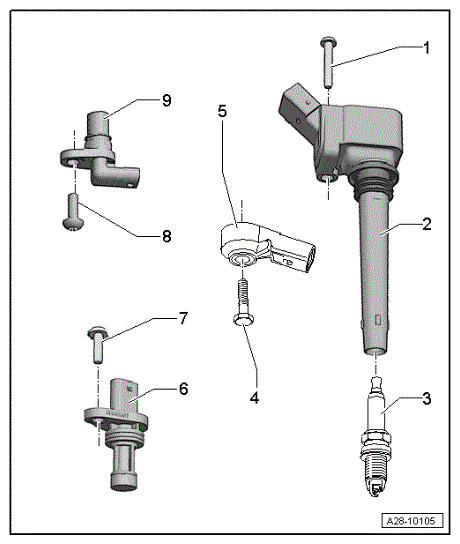

- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Ignition coil
- Spark plug → Tightening torque: 25 Nm (19 ftlb.) → Tightening torque: 30 Nm (22 ftlb.)
- Electrode gap of spark plug → Control value: 0.8 mm-0.1 mm
- Screw/replace → Tightening torque: 20 Nm (15 ftlb.)
- Knock sensor
- Pulse sender/check O-ring for damage
- Screw → Tightening torque: 10 Nm (7.5 ftlb.)
- Screw → Tightening torque: 9 Nm (6.5 ftlb.)
- Hall sender/replace O-ring
not shown - Nut securing ground line to ignition coil → Tightening torque: 10 Nm (7.5 ftlb.)
95BAA1
Model year as of 2014
C00, C02, C05, C06, C07, C08, C09, C10, C11, C12, C13, C14, C15, C16, C17, C18, C19, C20, C21, C22, C23, C24, C25, C26, C27, C28, C32, C33, C34, C35, C36, C37, C38, C39, C41, C45, C46, C96, C97, C98, C99
