Exhaust system
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

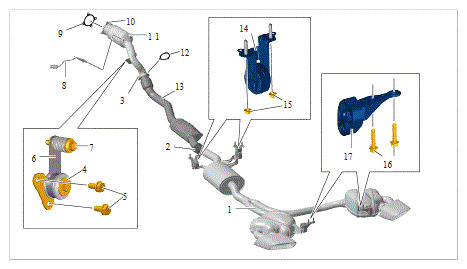

- Exhaust system with two rear silencers
- Clamping sleeve → Tightening torque: 33 Nm (24 ftlb.)
- Nuts/replace → Tightening torque: 23 Nm (17 ftlb.)
- Screw → Tightening torque: 23 Nm (17 ftlb.)
- Screws → Tightening torque: 23 Nm (17 ftlb.)
- Spring/tab assembly, FLP
- Screw → Tightening torque: 23 Nm (17 ftlb.)
- Oxygen sensor downstream of catalytic converter → Tightening torque: 55 Nm (41 ftlb.) High-temperature paste must not get into the slits on the oxygen sensor body.
- Seal/replace
- Nuts/replace → Tightening torque: 23 Nm (17 ftlb.)
- Catalytic converter
- Seal/replace
- Front silencer
- Exhaust-system mount
- Nuts → Tightening torque: 20 Nm (15 ftlb.)
- Screws → Tightening torque: 20 Nm (15 ftlb.)
- Rear silencer bracket
- Screws on tailpipe cover with A-pipe → Tightening torque: 8 Nm (6 ftlb.)
