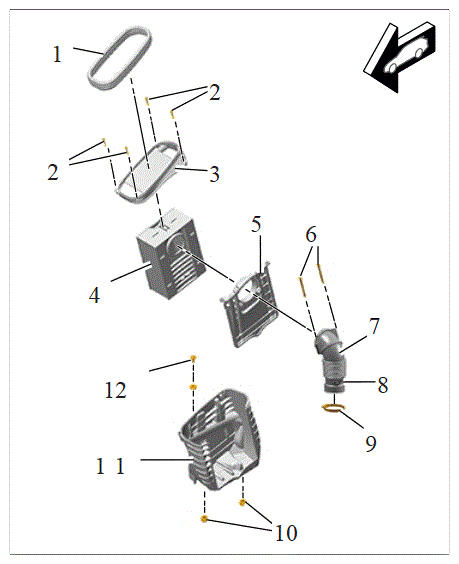

Air cleaner
WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
- Rubber seal
- Screws → Tightening torque: 3.5 Nm (2.5 ftlb.)
- Air cleaner housing cover
- Air-cleaner element
- Air-cleaner element cover
- Fastening bolt → Torque angle: 90°
- Intake pipe
- Vacuum hose connection
- Screw-type clamp → Tightening torque: 5.5 Nm (4 ftlb.)
- Rubber sleeves
- Air cleaner housing
- Screw → Tightening torque: 3.5 Nm (2.5 ftlb.)
