Installing Pressure Pipe

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

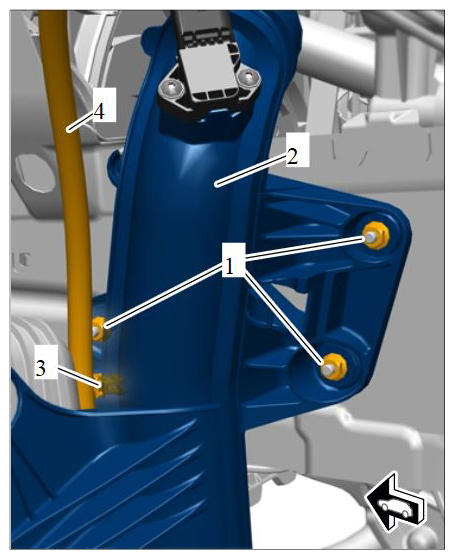

  1. Install pressure pipe.
    1. 1.1. Secure line -4-  to the pressure pipe. -3-
    2. 1.2. Position pressure pipe -2-  and screw on fastening nuts -1-  .
    3. 1.3. Tighten fastening nuts. Tightening torque 9 Nm (6.5 ftlb.)
      G11978187

      Pressure pipe on body

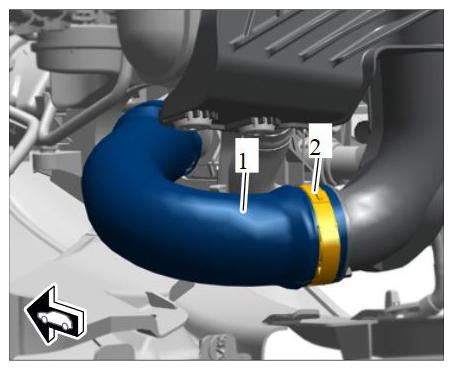

  2. Fit pressure hose -1-  and tighten screw-type clamp -2-  . Tightening torque 5.5 Nm (4 ftlb.)
    G11978188

    Pressure hose at bottom of pressure pipe

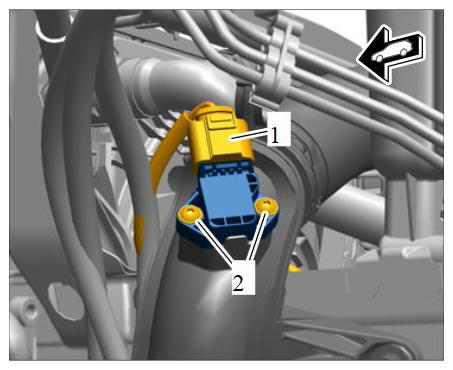

  3. Connect electric plug connection -1-  for the pressure sensor and secure the cable.
    G11978189

    Removing and installing pressure sensor

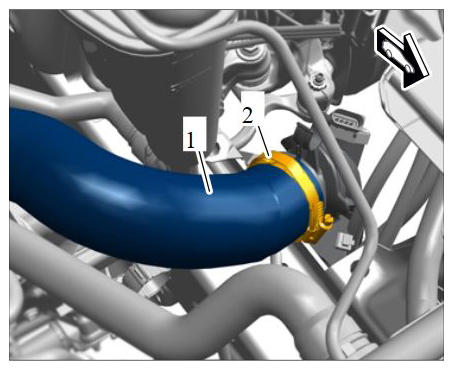

  4. Fit pressure hose -1-  and tighten screw-type clamp -2-  . Tightening torque 5.5 Nm (4 ftlb.)
    G11978190

    Pressure hose at top of pressure pipe
