Removing Intake Manifold

WARNING: This page is about a different car, the 2018 Porsche Macan and 2017 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The pictures shown in this document may differ from the original.
  1. Loosen fastening screws -2-  and remove air cleaner housing cover -1-  .

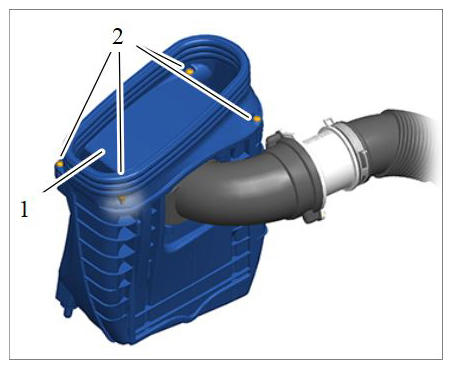

    G11978156

    Air cleaner housing cover

    NOTE:
    • Loosen and secure fastening bolts only in the specified direction
    • Turn fastening bolts by max. 90°, otherwise the guide lugs will break off.
      • Replace damaged fastening bolts.

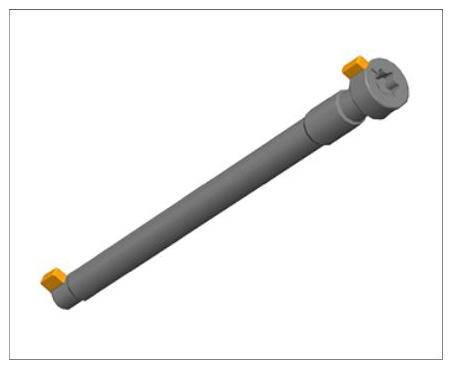

    G11978157

    Fastening bolts

  2. Loosen fastening bolts.
    1. 2.1. Press fastening bolts -1-  down slightly and turn by 90° in -direction of arrow-  .
    2. 2.2. Remove loosened fastening bolts -2-  .

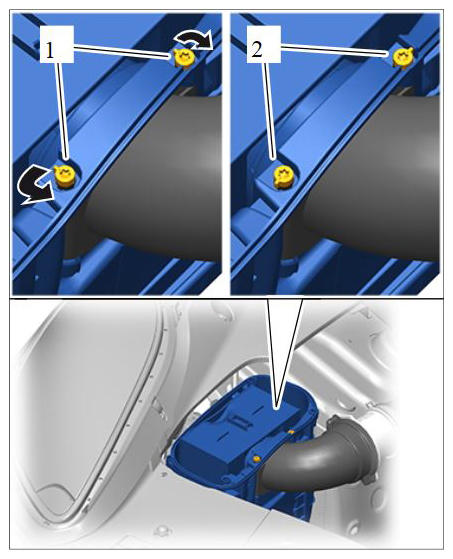

      G11978158
  3. Pull vacuum hose off the intake manifold.
  4. Loosen screw-type clamp and remove intake manifold from the turbocharger.
  5. Remove intake manifold -1-  in -direction of arrow-  .

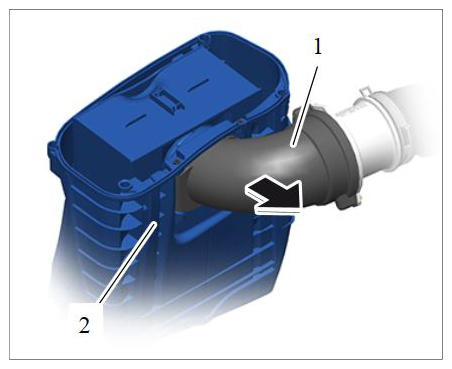

    G11978159
