Description And Operation: Description: Radiator
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

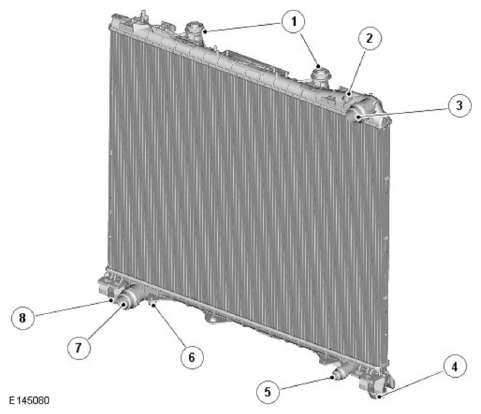

| ITEM | DESCRIPTION |
|---|---|
| 1 | Upper mounts |
| 2 | Vent hose connection |
| 3 | Upper hose connection |
| 4 | Lower mount |
| 5 | Automatic Transmission Fluid (ATF) cooler hose connection |
| 6 | Drain screw |
| 7 | Lower hose connection |
| 8 | Lower mount |
The radiator is a vertical-flow type with an aluminum core and plastic end tanks. The radiator is located in the vehicle by bushes attached to the end tanks. The lower bushes are installed in the front subframe. The upper bushes are installed in the front end carrier.
Upper and lower hose connections are incorporated into the upper and lower end tanks respectively. The lower end tank also incorporates a drain screw, and a connection for the coolant feed hose of the Automatic Transmission Fluid (ATF) cooler. The upper end tank incorporates a connection for a vent hose to the coolant expansion tank. The end tanks also incorporate mounting points for the cooling fan shroud and the Air Conditioning (A/C) condensor.
