Auxiliary Radiator
WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, and 2016 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.

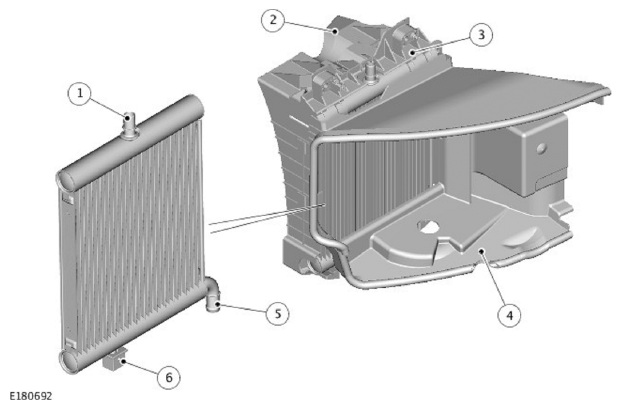

| ITEM | DESCRIPTION |
|---|---|
| 1 | Coolant inlet hose connection |
| 2 | Rear air duct |
| 3 | Radiator support bracket |
| 4 | Front air duct |
| 5 | Coolant outlet hose connection |
| 6 | Isolator |
The auxiliary radiator is located on the right side of the cooling pack, behind the outer air intake in the front bumper. The auxiliary radiator is installed in air ducts attached to the front bumper armature and the front end carrier. The lower end tank of the auxiliary radiator is located in the air duct by a spigot fitted with an isolator bush. The upper end tank of the auxiliary radiator is held in a support bracket in the air duct.
The auxiliary radiator is connected in parallel with the (main) radiator to increase the engine cooling capacity.
