Fuel Pump Driver Module

WARNING: This page is about a different car, the 2018 Land Rover Range Rover, 2017 Land Rover Range Rover, 2016 Land Rover Range Rover, 2015 Land Rover Range Rover, and 2014 Land Rover Range Rover. However, it is still accessible from the selected car via links, so may be relevant.
G11708476

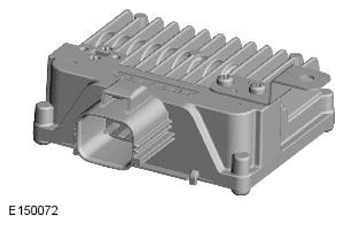

The Fuel Pump Driver Module (FPDM) is attached to the right side rear floor member.

The FPDM controls the speed of the fuel pump to match the fuel demand of the engine.

The pump speed required is calculated by the Powertrain Control Module (PCM) and transmitted to the FPDM in a Pulse Width Modulation (PWM) output.
