Rear Section
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.

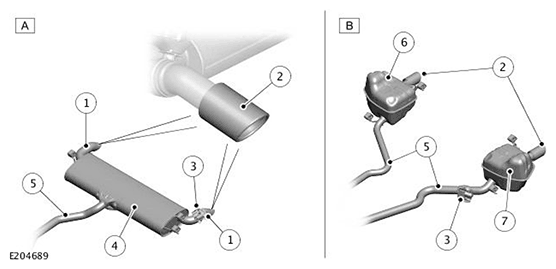

| ITEM | DESCRIPTION |
|---|---|
| A | Exhaust system rear section - All variant vehicles |
| B | Exhaust system rear section - Vehicles with third row seats and spare wheel only |
| 1 | Outlet pipe (2 off) |
| 2 | Stainless steel outlet pipe finisher - If equipped |
| 3 | Active exhaust actuator |
| 4 | Rear silencer |
| 5 | Inlet pipe |
| 6 | Rear right silencer |
| 7 | Rear left silencer |
All vehicles have one rear silencer assembly with one inlet and two outlet pipes welded to the silencer. Depending on specification, stainless steel finishers are welded on to the outlet pipes. The exhaust gases are expelled from the rear silencer via a dual outlet pipe.
On the vehicles with third row seats and spare wheel, the rear section is divided into right side and left side rear silencer assemblies. Stainless steel finishers are welded on to the outlet pipes. The exhaust gases are expelled from each rear silencer via a single outlet pipe.
There are three different rear silencers available depending on the specification:
- Vehicles with one silencer and standard outlet pipe.
- Vehicles with one silencer and stainless steel outlet pipe finisher.
- Vehicles with left and right rear silencer and stainless steel outlet pipe finisher.
Each side of the rear section is supported by mounting rubbers.
