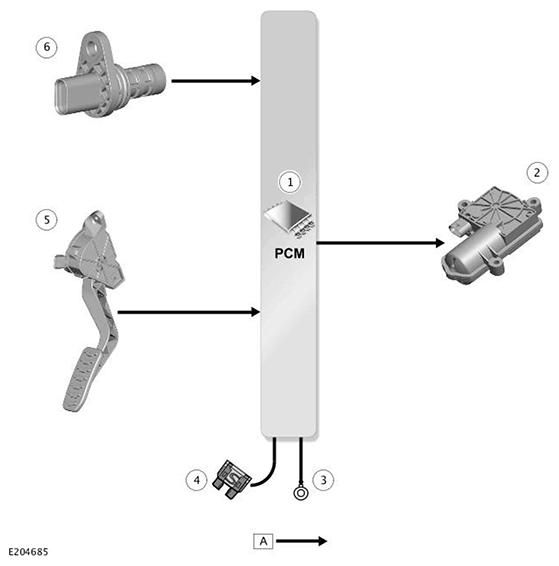

Control Diagram
WARNING: This page is about a different car, the 2018 Land Rover Discovery Sport. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED.
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Active exhaust actuator |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Accelerator Pedal Position (APP) sensor |
| 6 |
Crankshaft Position (CKP) sensor |
