Removing Pulley

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2019 Porsche 911, 2018 Porsche 911, 2017 Porsche 911, 2016 Porsche 911, and 2015 Porsche 911. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position pulley -1-  for removal.
    1. 1.1. Turn the pulley clockwise using special tool turning device 9773 -3-  until one staking bore is flush with the bore in the crankcase.
    2. 1.2. Stake the pulley using one of the locating pins 9595/1 -4-  .

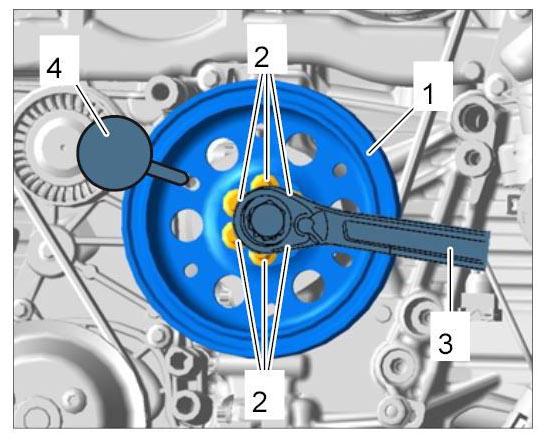

      3. Fig 1: Positioning Pulley For Removal
      G09990628Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove pulley -1-  .
    1. 2.1. Unscrew fastening screws -2-  .
    2. 2.2. Guide the pulley -2-  out through the engine carrier.
    3. 2.3. Check the pulley -1-  and dowel pin for damage and replace them if necessary.
    4. 2.4. Replace fastening screws -2-  .
      5. Fig 2: Removing Pulley
      G09990629Courtesy of PORSCHE CARS NORTH AMERICA, INC.
