Removing Fog Lights

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Voltage peaks

Risk of damage to load or to the control unit

→ Switch off ignition and remove remote control before disconnecting or removing load.

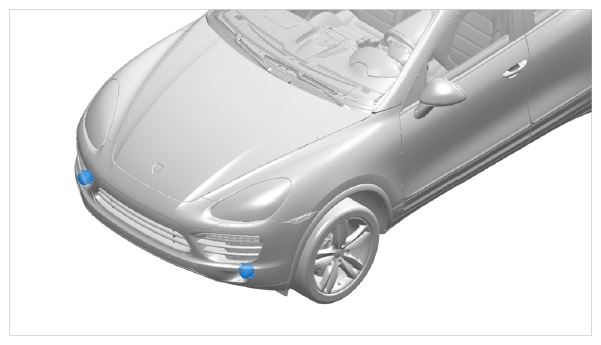

Fig 1: Identifying Position Of Fog Light

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

The work steps are the same for the left and right fog lights .

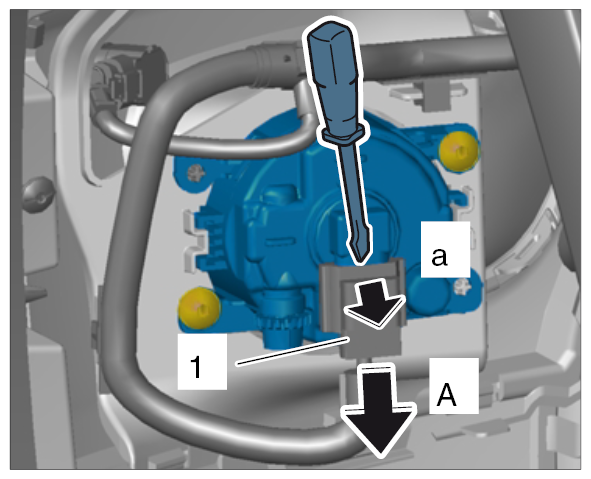

Release electric plug connection -1- on the fog light -a- and disconnect it -A- .

Fig 2: Disconnecting Plug Connection At Fog Light
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

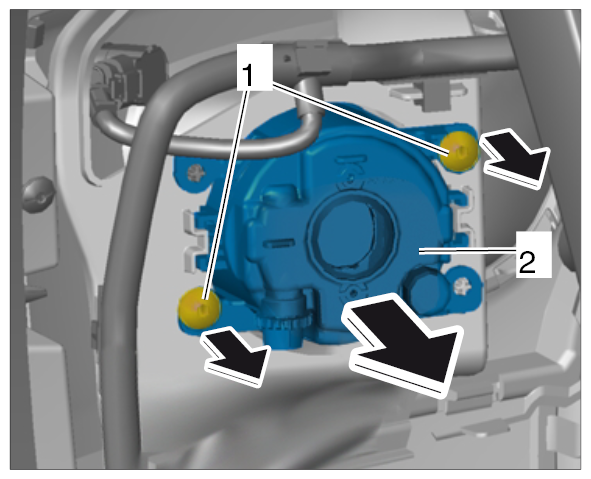

Unscrew two fastening screws -1- .
Remove fog light -2- .

Fig 3: Fog Light Mounting

Courtesy of PORSCHE CARS NORTH AMERICA, INC.
