Removing Steering-Column Switch

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release and disconnect electric plug connections -1-  .
  2. Loosen clamping screw -2-  .
  3. Remove steering-column switch -3-  with control unit for steering wheel electronics from the steering column.

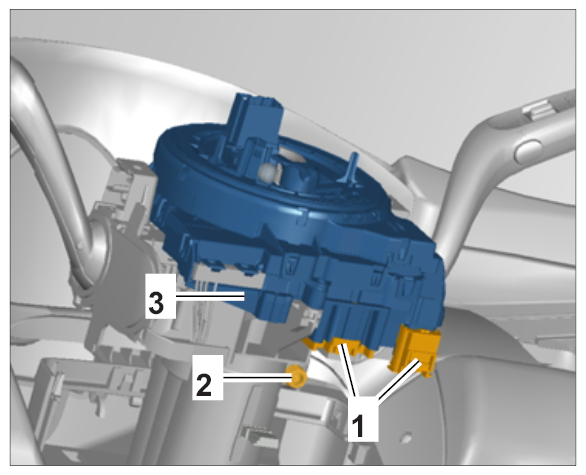

    Fig 1: Identifying Steering-Column Switch And Screws
    G09943157Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    When replacing the steering-column switch:

  4. Remove steering wheel electronics control unit from the steering-column switch. → REMOVING CONTROL UNIT FOR STEERING WHEEL ELECTRONICS
