Technical Values

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance 1 Tolerance 2

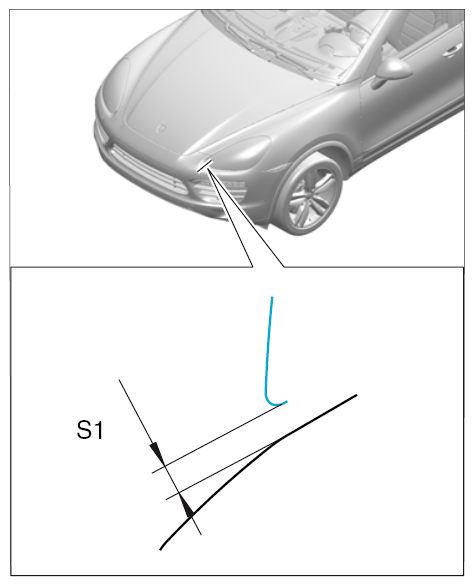

Gap dimension between headlight and front apron   Gap dimension S1 3.5 mm +/-0.5 mm
G09943109

Front apron to headlight
Gap dimension between headlight and wing   Gap dimension S3 1.2 mm +/-0.5 mm
Headlight to top of wing
