Removing Headlight Mounting

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2018 Porsche Cayenne, 2017 Porsche Cayenne, 2016 Porsche Cayenne, 2015 Porsche Cayenne, and 2014 Porsche Cayenne. However, it is still accessible from the selected car via links, so may be relevant.

Information

To restore the original installation position, thereby minimizing the amount of adjustment work required, the following steps must be carried out prior to removal:

Mark the position of the headlight mounting with respect to fastening screws .
Measure and take note of the height of the headlight mounting with respect to the body .

Mark the position of the washers -1- on the headlight mounting -2- using a water-resistant pen to make it easier to adjust the gap dimensions on the front lid when re-installing the headlight mounting.

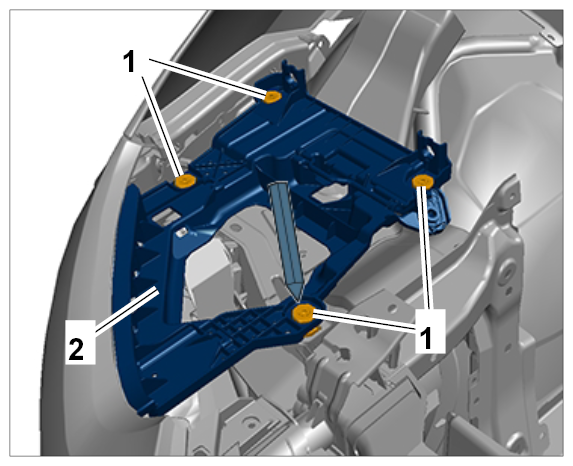

Fig 1: Identifying Marking Position Of Washers
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screws -1- .
1. 2.1. Press the headlight mounting -2- down close to each fastening screw -F- (to prevent the adjusting elements from turning) and unscrew fastening screws from the body.
2. 2.2. Pull fastening screws out of the adjusting elements.

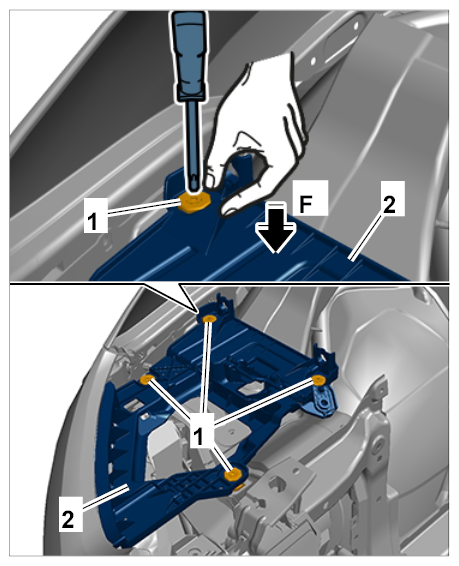

  Fig 2: Removing Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3. Remove headlight mounting.
