Removing Rear Drive Shaft

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

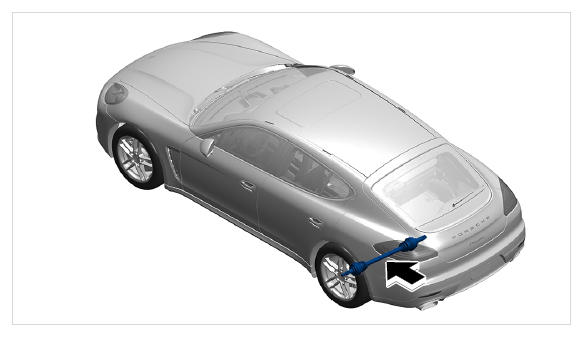

Fig 1: Locating Rear Drive Shaft
G09807576Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release and unclip the connector for the brake pad wear indicator -A-  and remove it from the holder -B-  .

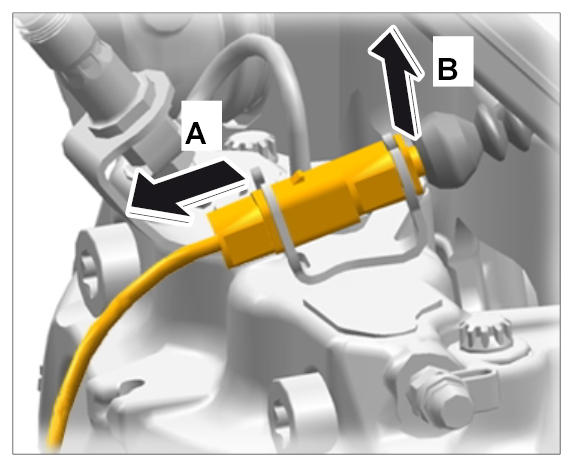

    Fig 2: Removing Brake Pad Wear Indicator From Holder
    G09807577Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Loosen fastening screw -1-  on the holder for the brake pad wear indicator cable and brake line from the brake calliper.

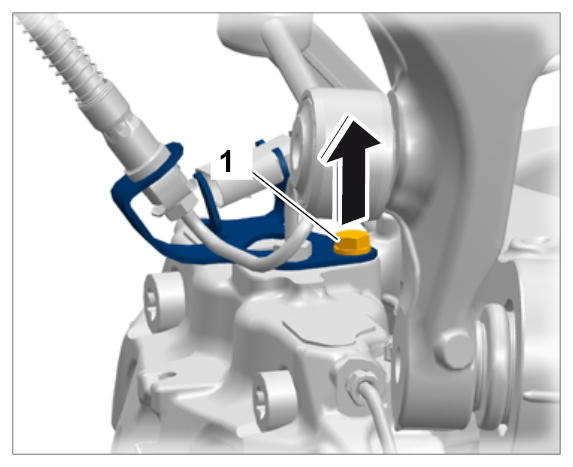

    Fig 3: Loosening Brake Line Holder Fastening Screw
    G09807578Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    NOTE: Removing/fitting wheels
    • Risk of damage to (ceramic) brake discs

    → Carefully guide the wheel towards the wheel hub, thereby preventing any heavy impact on the (ceramic) brake disc.

  3. Evenly set back brake pads a little using water pump pliers.

    Information

    • Never use an impact bolter to loosen and tighten the brake calliper on the wheel bearing housing.

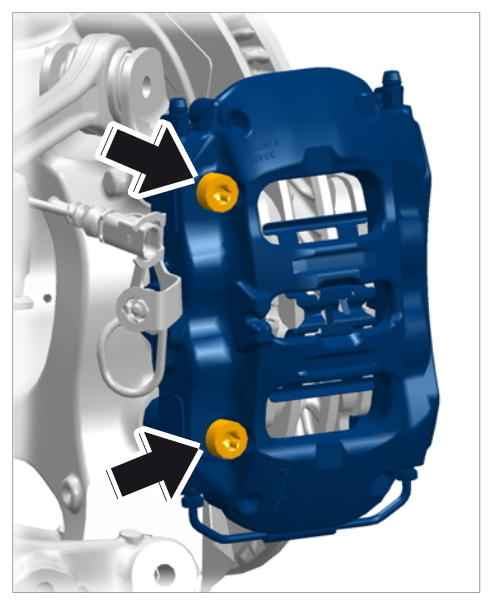

  4. Loosen fastening screws on the brake calliper -arrows-  and remove brake calliper from the wheel carrier.
    Fig 4: Loosening Brake Calliper Fastening Screws
    G09807579Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  5. Suspend the brake calliper at a suitable position in the wheel housing (do not open the brake hydraulic system!).

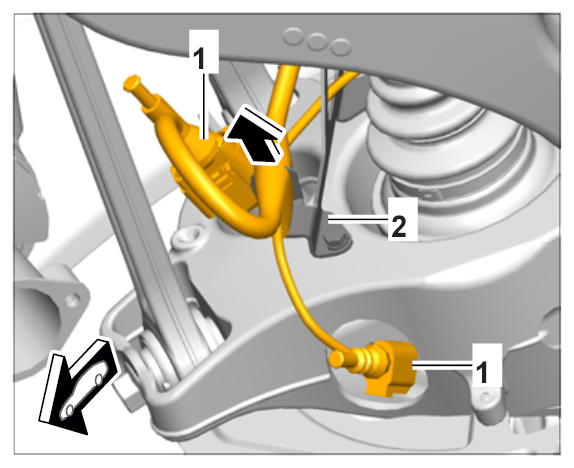

  6. Disconnect push-on connector -1-  and detach bracket -2-  from the wheel carrier.
    Fig 5: Disconnecting Connector And Bracket From Wheel Carrier
    G09807580Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  7. Disengage linkage -1-  for the level sensor at the ball pin -2-  .

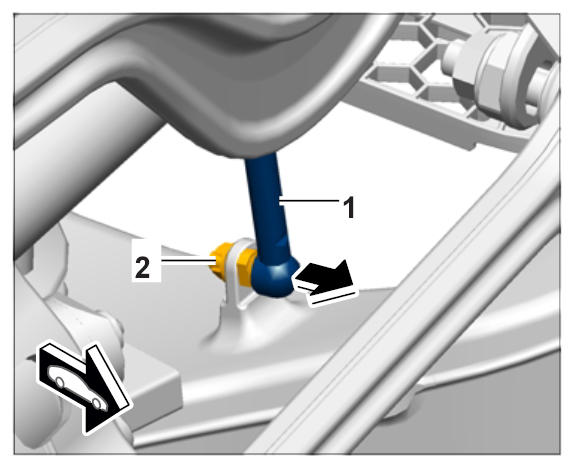

    Fig 6: Disengaging Level Sensor At Ball Pin
    G09807581Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  8. Puller set Nr.87-1 Pos.1 -1-  must be fitted on the brake disc.

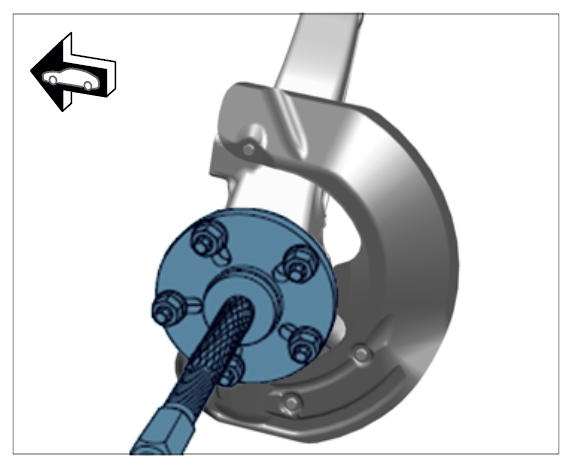

    Fig 7: Identifying Puller Set On Brake Disc
    G09807582Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  9. Support wheel carrier using a suitable lever -2-  on the outside in order to prevent the wheel carrier from tipping over.

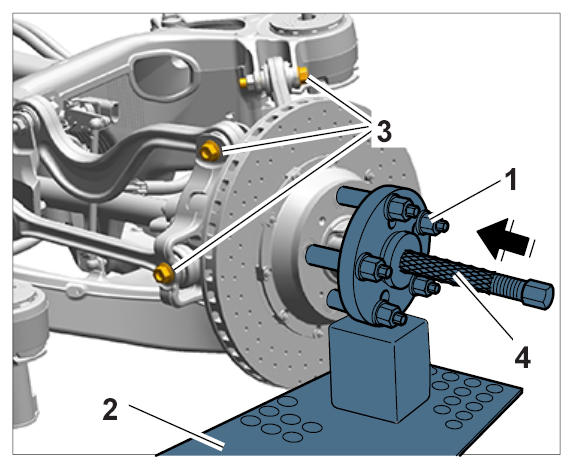

    Fig 8: Supporting Wheel Carrier
    G09807583Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  10. Screw in spindle -4- → Control value: +10 mm  (-arrow-  ).
  11. Unscrew and remove fastening screws -3-  for the upper trailing arms and tie rod.
  12. Lower the lever -2-  slowly.
    1. 12.1. While tilting the wheel carrier with the spindle -4-  , press the drive shaft back as far as required until it can be removed from the hub.
  13. Remove lever -2-  .

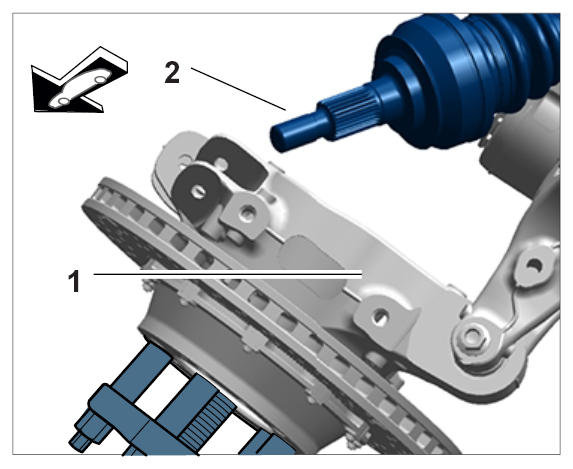

  14. Tilt wheel carrier -1-  downwards. Get a second fitter to hold the drive shaft -2-  .
    Fig 9: Tilting Wheel Carrier
    G09807584Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  15. Protect drive shaft using a suitable plastic tube and carefully set it down on the chassis subframe while performing the following work.

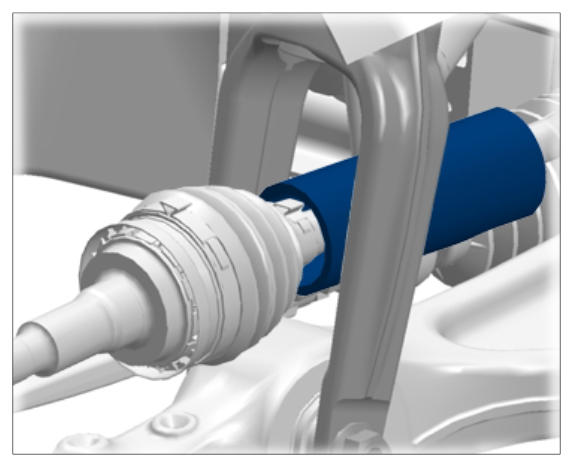

    Fig 10: Example Of Protective Tube
    G09807585Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  16. Left side: Break off protective plastic ring -1-  with a screwdriver.

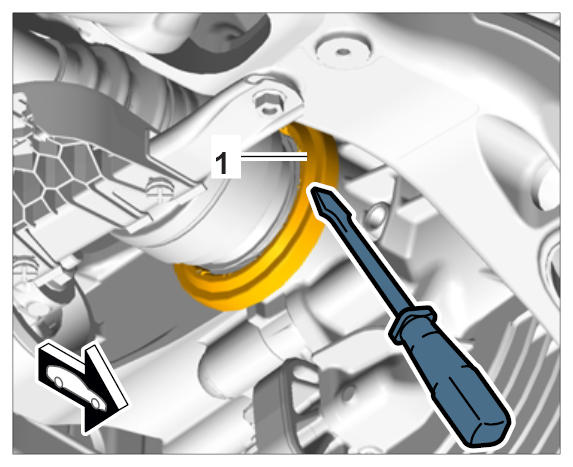

    Fig 11: Breaking Protective Plastic Ring
    G09807586Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  17. Lever the drive shaft out of the rear-axle transmission housing using two mounting levers, for example.
    IMPORTANT: Hold the drive shaft!  In the event of unfavorable tolerances, the drive shaft might slip out.

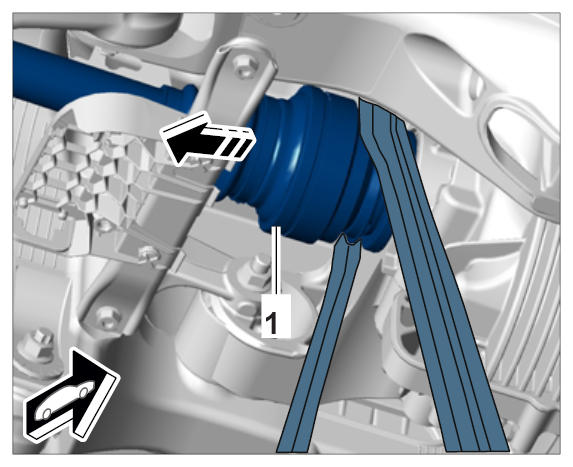

    Fig 12: Fitting Mounting Levers
    G09807587Courtesy of PORSCHE CARS NORTH AMERICA, INC.
