Removal Instructions
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Preloaded or pressurized components
- Risk of squashing or bruising
→ Do not reach into the danger area.
→ Relieve the tension on components before starting work.
→ Secure components to prevent them from loosening suddenly.
Information
- Observe the correct allocation (engine variant/chassis variant) when installing new coil springs and/or shock absorbers.
- We recommend that you replace the coil springs only in pairs.
- Observe allocation of the bottom spring plate according to the coil spring tolerance group.
- Clamp the spring strut at the damper fork in a vice (use protective jaws). Make sure that the damper fork is not pressed together and that the spring strut is not clamped at the connection for the anti-roll bar connecting link!

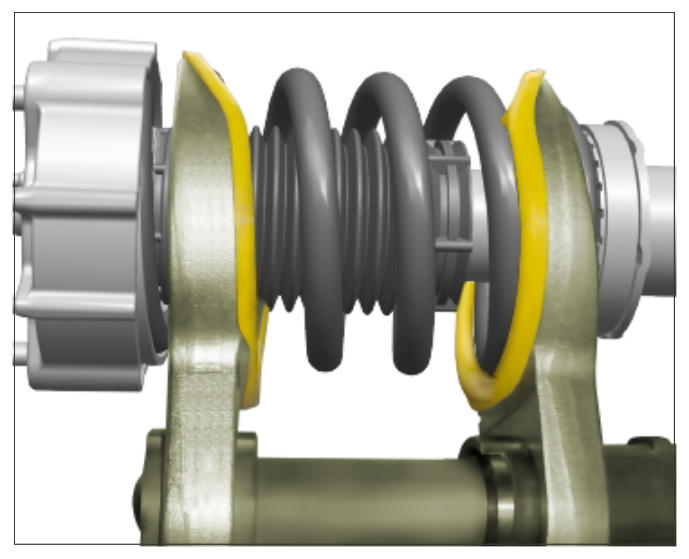

- Carefully and while observing the safety regulations, pre-tension the coil spring using spring compressor Nr.121-1 Pos.1
and the relevant spring holders until the tension on the piston rod is relieved. → Spring compressor
Always follow the instructions provided by the tool manufacturer!

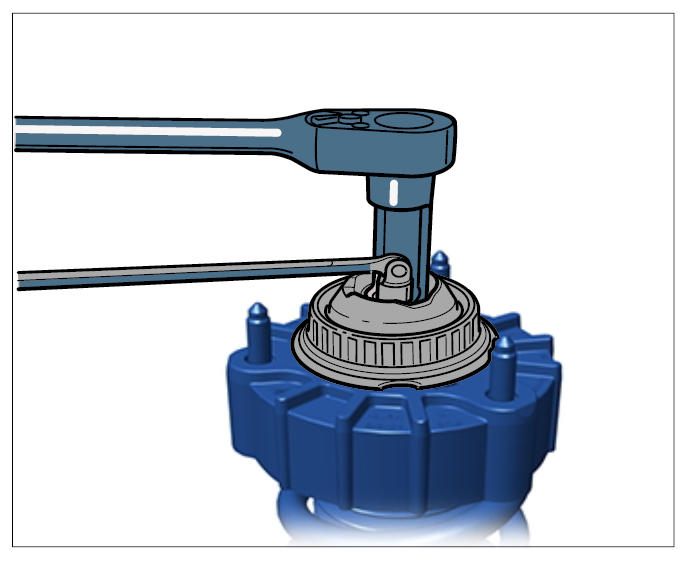

- Loosen nut used to secure the supporting mount using socket-wrench insert 3353 . → Removing supporting mount
- Remove all components from the piston rod.
