WM 408537 Disassembling And Assembling Front Spring Strut (PANAMERA Executive, PANAMERA Turbo S, PANAMERA Turbo S Executive, PANAMERA 4S Sport Edition, PANAMERA 4 Executive): Information: Overview
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

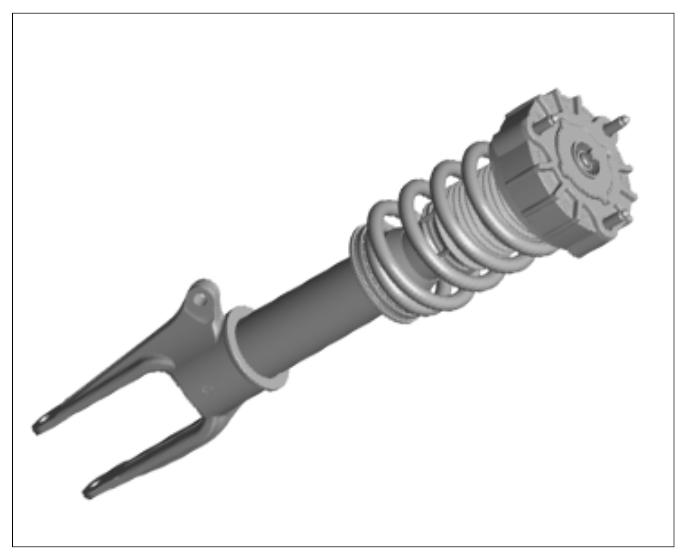

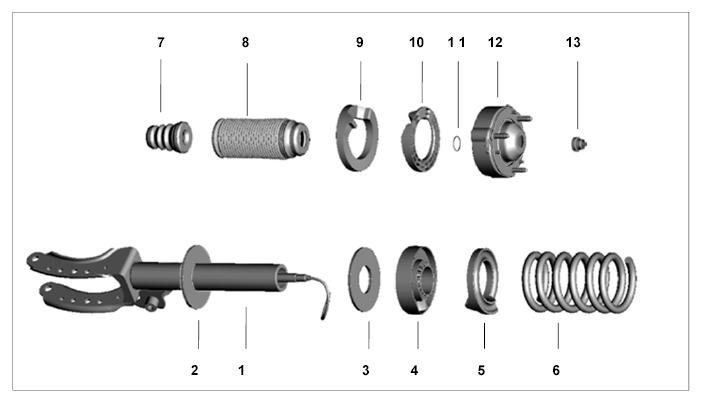

| No. | Designation | Qty. | Removal | Installation |
|---|---|---|---|---|
| 1 | Shock absorber (vibration damper) | 1 | Shock absorbers (vibration dampers) for the right and left side are identical parts. | |
| 2 | Cap | 1 | Fit to shock absorber. | |
| 3 | Shim, bottom | 1 | ||
| 4 | Shim, bottom | 1 | ||
| 5 | Concave washer, bottom | 1 | ||
| 6 | Coil spring | 1 | ||
| 7 | Additional spring | 1 | Fit to shock absorber. | |
| 8 | Bellows | 1 | ||
| 9 | Concave washer, top | 1 | ||
| 10 | Top support | 1 | ||
| 11 | Spacer for supporting mount | 1 | ||
| 12 | Supporting mount | 1 | Remove complete assembly (supporting mount no. 12, with top support no. 10 and top concave washer no. 9). | |
| 13 | Hexagon nut | 1 | Replace fastening nut. Remove wax from piston rod thread. |
