Installing Oil Mist Separator

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

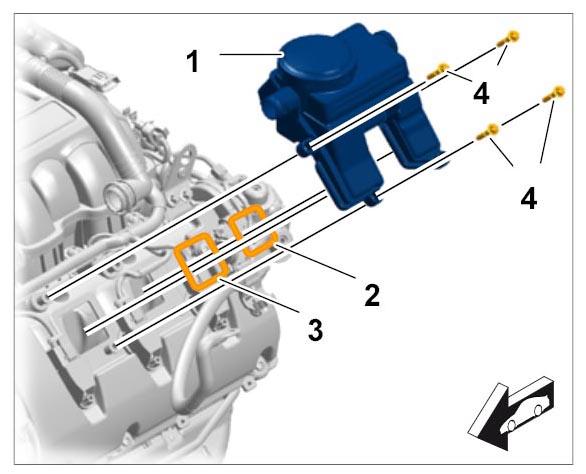

Fig 1: Overview Of Oil Mist Separator
G09804284Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Engine ventilation/oil mist separator
  2. Molded seal
  3. Molded seal
  4. Screw elements, M6
  1. Check seals on oil mist separator and replace if damaged.
  2. Place oil mist separator in installation position.
  3. Fit oil mist separator evenly onto the valve cover.
  4. Screw in and tighten screws for oil mist separator by hand -2-  . Screws are permanently connected. If screws are damaged, press the screws out of the oil mist separator and replace them.
  5. Fit line connections to the connection pieces on the oil mist separator -1-  . You should hear and feel the lines engage.

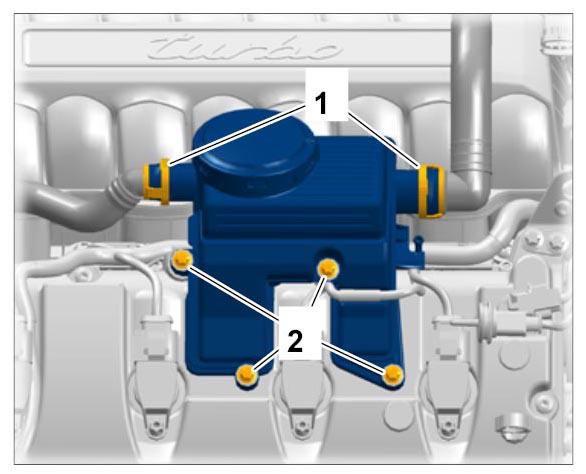

    6. Fig 2: Identifying Oil Mist Separator
    G09804285Courtesy of PORSCHE CARS NORTH AMERICA, INC.
