Component Overview - Engine Mount

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Information

For more information, see P ORSCHE E LECTRONIC PAR T S CATALOGUE "PET"

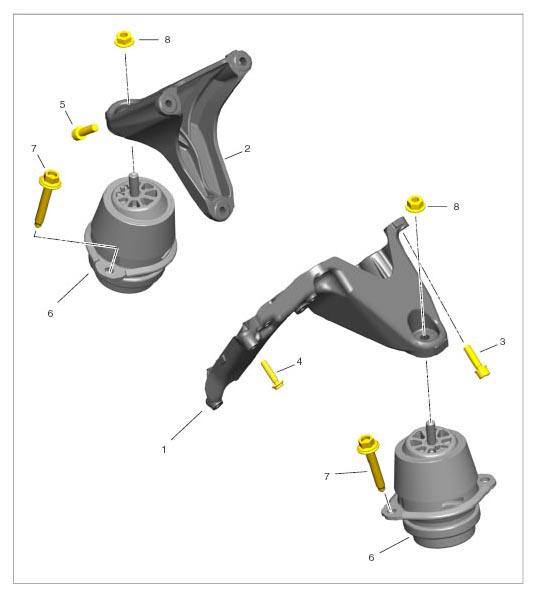

Fig 1: Component Overview - Engine Mount

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left engine support
Right engine support
Screw, M10 x 35 → Tightening torque: 65 Nm (48 ftlb.)
Screw, M8 x 35 → Tightening torque: 33 Nm (24 ftlb.)
Screw, M10 x 35 → Initial tightening: 65 Nm (48 ftlb.)
Engine mount
Screw, M10 x 55 → Tightening torque: 65 Nm (48 ftlb.)
Nut → Tightening torque: 120 Nm (89 ftlb.)
