Group 47

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

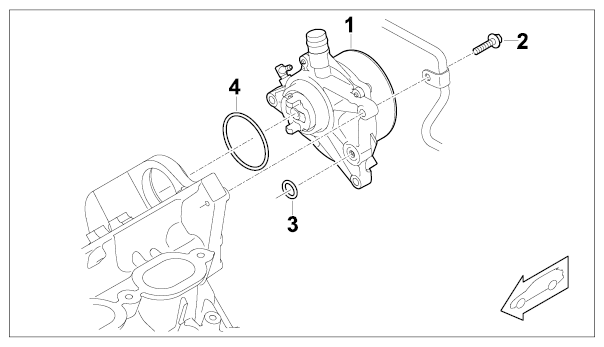

Fig 1: Identifying Vacuum Pump, Sealing Rings And Screws
G09803975Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Vacuum pump
  2. Screw, M6 x 25 → Tightening torque: 10 Nm (7.5 ftlb.)
  3. Sealing ring
  4. Sealing ring
