Removing Light-Emitting Diode For Alarm System

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

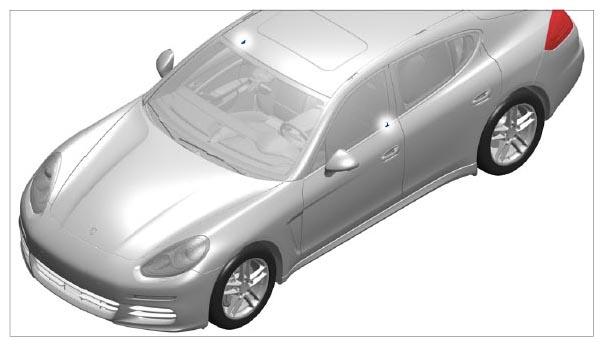

Fig 1: Identifying Light-Emitting Diode For Alarm System
G09815026Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Turn light-emitting diode and holder to release it.

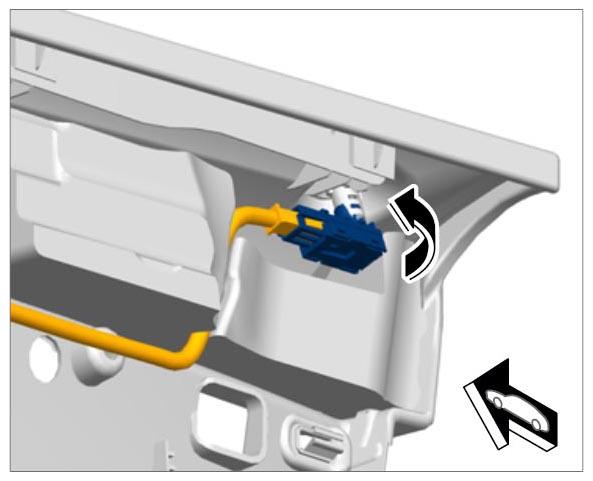

    Fig 2: Turning To Remove Light-Emitting Diode
    G09815027Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove light-emitting diode from the bracket by pulling it downwards.
  3. Disconnect plug connection.

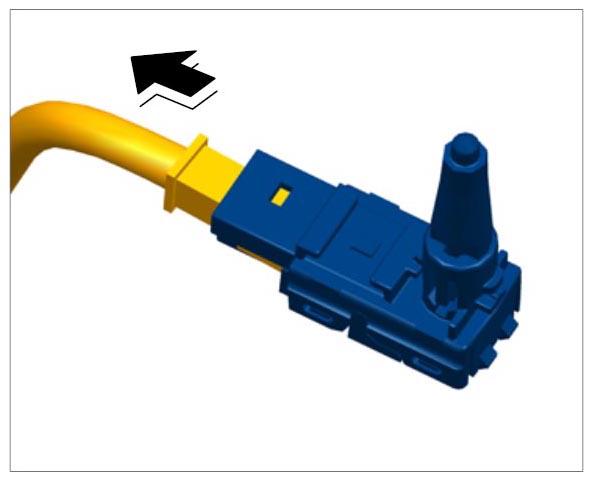

    Fig 3: Disconnecting Plug Connection
    G09815028Courtesy of PORSCHE CARS NORTH AMERICA, INC.
