Disassembling And Assembling Remote Control

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2016 Porsche Panamera, 2015 Porsche Panamera, 2014 Porsche Panamera, 2013 Porsche Panamera, and 2012 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

Pull emergency key out of the remote control.

Release locking mechanism -arrow- and pull emergency key out of the remote control -arrow- .

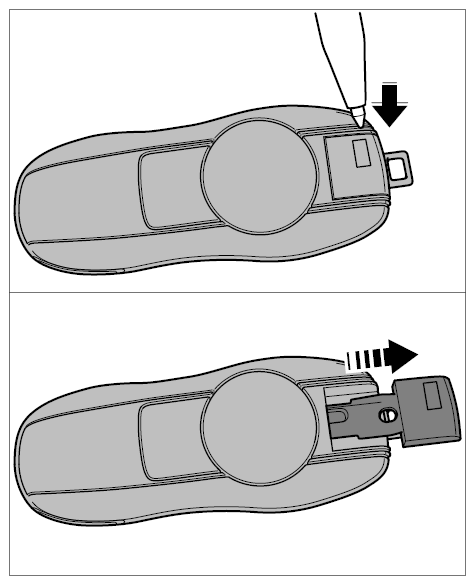

Fig 1: Pulling Out Emergency Key
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove the battery from the remote control.
Open the battery cover -arrow- and remove the battery.

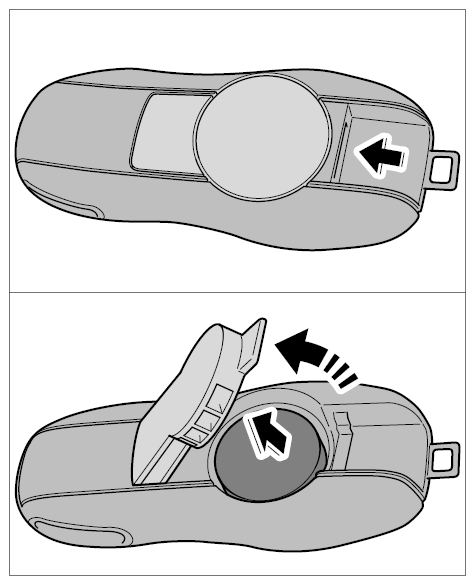

Fig 2: Opening Battery Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Assemble in reverse order.
